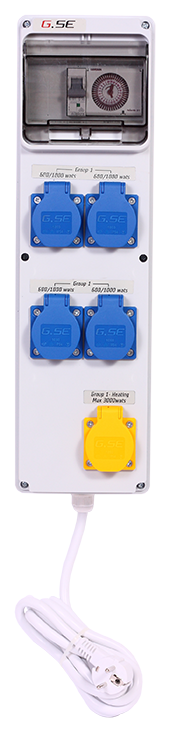

G-Systems timer box III is engineered from high quality components such as Hager timer made in Germany and Iskra contactors from Slovenia.
A solid housing with a cover and seal joint will result in a high protection class IP44. On 1-3 safety breaker it is possible to switch ON/OFF the power circuits. The timer box III is used by several inductive loads such as HPS (high pressure sodium) or MH (metal halide) lamps with high switch on and off simultaneously. All models with heating socket is on when lights are off (power management).
The heating circuit (yellow box) switches on as soon the power of the light circuit shuts down. Often it makes sense to plug there any kind of heating elements, to balance falling temperatures from the missing light heat, thats why this function is called heater. But for sure there can be plugged also other devices that are just needed during the light mode is off.
| Variant | Voltage (V) | Current (A) | Power maximum | IP Rating | Heating | Mechanical timer | Modes | Switching time | Dimensions | Power Plug | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 x 600W | - | - | - | - | - | - | - | - | - | AU | CVG05361 | SD30-216AU | 165,83 € | |
| 4 x 600W | - | - | - | - | - | - | - | - | - | BR | CVG05362 | SD30-216BR | 165,83 € | |
| 4 x 600W | - | - | - | - | - | - | - | - | - | CH | CVG05363 | SD30-216CH | 165,83 € | |
| 4 x 600W | - | - | - | - | - | - | - | - | - | FR | CVG05364 | SD30-216FR | 165,83 € | |
| 4 x 600W | - | - | - | - | - | - | - | - | - | IT | CVG05365 | SD30-216IT | 165,83 € | |
| 4 x 600W | 230 V | 1 x 16 A | 2400 W | IP54 | Up to 2400W | 24h am/ pm | Auto/ Manual | 15 min | 50 x 16 x 11,5 cm | EU | CVG00352 | SD30-216EU | 165,83 € | |
| 4 x 600W | - | - | - | - | - | - | - | - | - | UK | CVG05366 | SD30-216UK | 178,33 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | AU | CVG05367 | SD31-232AU | 199,17 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | BR | CVG05368 | SD31-232BR | 199,17 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | CH | CVG05369 | SD31-232CH | 199,17 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | FR | CVG05370 | SD31-232FR | 199,17 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | IT | CVG05371 | SD31-232IT | 199,17 € | |
| 8 x 600W | 230 V | 2 x 16 A | 4800 W | IP54 | Up to 2400W | 24h am/ pm | Auto/ Manual | 15 min | 50 x 16 x 11,5 cm | EU | CVG00353 | SD31-232EU | 199,17 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | AU | CVG05379 | SD32-448AU | 215,83 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | BR | CVG05380 | SD32-448BR | 215,83 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | CH | CVG05381 | SD32-448CH | 215,83 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | FR | CVG05382 | SD32-448FR | 215,83 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | IT | CVG05383 | SD32-448IT | 215,83 € | |
| 12 x 600W (3-phase) | 230 V | 3 x 16 A | 7200 W | IP54 | Up to 2400W | 24h am/ pm | Auto/ Manual | 15 min | 50 x 16 x 11,5 cm | EU | CVG00355 | SD32-448EU | 215,83 € | |
| 8 x 600W | - | - | - | - | - | - | - | - | - | UK | CVG05372 | SD31-232UK | 220,00 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | AU | CVG05373 | SD32-248AU | 224,17 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | BR | CVG05374 | SD32-248BR | 224,17 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | CH | CVG05375 | SD32-248CH | 224,17 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | FR | CVG05376 | SD32-248FR | 224,17 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | IT | CVG05377 | SD32-248IT | 224,17 € | |
| 12 x 600W | 230 V | 3 x 16 A | 7200 W | IP54 | Up to 2400W | 24h am/ pm | Auto/ Manual | 15 min | 50 x 16 x 11,5 cm | EU | CVG00354 | SD32-248EU | 224,17 € | |
| 12 x 600W (3-phase) | - | - | - | - | - | - | - | - | - | UK | CVG05384 | SD32-448UK | 240,83 € | |
| 12 x 600W | - | - | - | - | - | - | - | - | - | UK | CVG05378 | SD32-248UK | 249,17 € |
