GSE Timer box I

  • Select: Variant
  • Select: Power Plug

Product ID: CVG05401
Vendor ID: SD112-EU-16

65,83 € Retail: 65,83 € 65.83 EUR

65,83 €

N/A

* tax excl.

Product not available

This is currently a wholesale site only. Please log in to see wholesale pricelist. No account yet? Register to sign up or contact us if any questions.

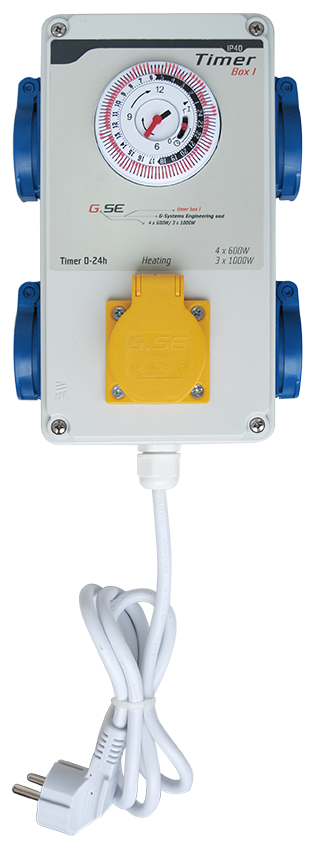

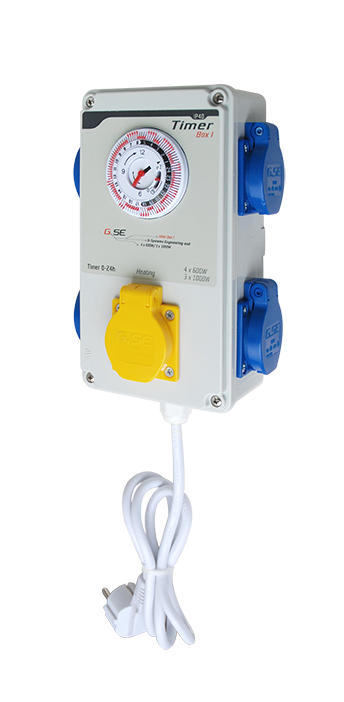

GSE Timer box I is a budget version containing a daily-timer with 15 min segments and Off-Auto.-On position switch made in China. The timer box manages several inductive loads such as high pressure lamps simultaneously. It is a well-engineered contactor based on control system for up to 4 x 600W inductive loads controlled by a certificated and patented GSE-electronic. Timer box with heating socket is an intelligent product, it allows to heat when your lamps are off. (Power-management)

The mechanical timer (China) in Timer Box I has a return rate of 4-5%, compared to the mechanical timer (GRÄSSLIN) in TimerBox II  & TimerBox III has a return rate of 2%  and Timer Box IV with a return rate of less than 0.5%.

Variant Voltage (V) Current (A) Plugs & Sockets IP Rating Heating Timer Dimensions Max. Power Power Plug ID Vendor ID Price
4 x 600W 230 V 13 A AU IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W AU CVG05398 SD112-AU-16 65,83 €
4 x 600W 230 V 13 A BR IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W BR CVG05399 SD112-BR-16 65,83 €
4 x 600W 230 V 13 A CH IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W CH CVG05400 SD112-CH-16 65,83 €
4 x 600W 230 V 13 A EU IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W EU CVG05401 SD112-EU-16 65,83 €
4 x 600W 230 V 13 A FR IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W FR CVG05402 SD112-FR-16 65,83 €
4 x 600W 230 V 13 A IT IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W IT CVG05403 SD112-IT-16 65,83 €
4 x 600W 230 V 13 A UK IP20 Yes Not. Grässlin 15 x 24 x 9,7 cm 3000W UK CVG05404 SD112-UK-16 74,17 €
