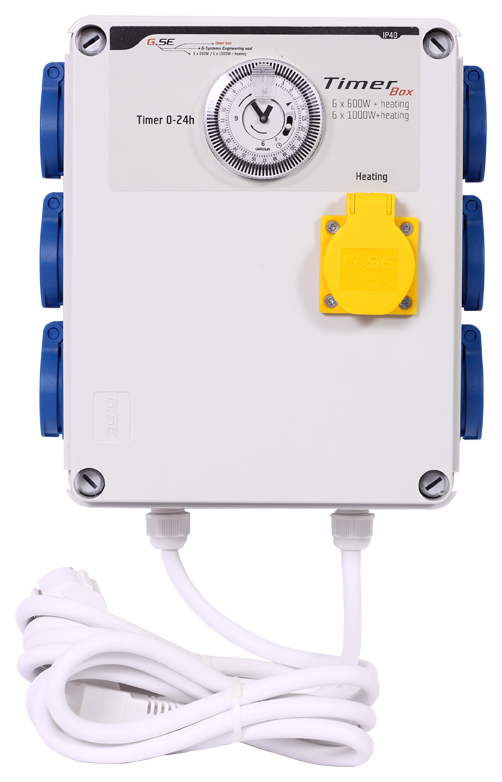

Timer box is used for several inductive loads such as HPS (high pressure sodium) bulbs with high switch on and off simultaneously.
A chargeable battery in the timer allows to run the timer for 36h without power-grid, GSE strictly recommend to keep the battery charged min. once a year. The battery have a restricted warranty of 14 months from the date of the production from GRÄSSLIN. On all other components 24/36months after sales.
The mechanical timer (China) in Timer Box I has a return rate of 4-5%, compared to the mechanical timer (GRÄSSLIN) in TimerBox II & TimerBox III has a return rate of 2% and Timer Box IV with a return rate of less than 0.5%.
| Variant | Voltage (V) | Plugs & Sockets | IP Rating | Heating | Timer | Dimensions | Max. Power | Power Plug | Contactor | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 x 600W | 230 V | AU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | AU | 4 x 16A 230V | CVG05301 | SD122-16-AU-/ | 107,50 € | |
| 4 x 600W | 230 V | BR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | BR | 4 x 16A 230V | CVG05303 | SD122-16-BR-/ | 107,50 € | |
| 4 x 600W | 230 V | CH | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | CH | 4 x 16A 230V | CVG05305 | SD122-16-CH-/ | 107,50 € | |
| 4 x 600W | 230 V | FR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | FR | 4 x 16A 230V | CVG05307 | SD122-16-FR-/ | 107,50 € | |
| 4 x 600W | 230 V | IT | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | IT | 4 x 16A 230V | CVG05309 | SD122-16-IT-/ | 107,50 € | |
| 4 x 600W | 230 V | EU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | EU | 4 x 16A 230V | CVG00342 | SD122-16-EU-/ | 107,50 € | |
| 4 x 600W + Heating | 230 V | AU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | AU | 4 x 16A 230V | CVG05302 | SD12-216AU-H | 115,83 € | |
| 4 x 600W + Heating | 230 V | BR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | BR | 4 x 16A 230V | CVG05304 | SD12-216BR-H | 115,83 € | |
| 4 x 600W + Heating | 230 V | CH | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | CH | 4 x 16A 230V | CVG05306 | SD12-216CH-H | 115,83 € | |
| 4 x 600W + Heating | 230 V | FR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | FR | 4 x 16A 230V | CVG05308 | SD122-16-FR-H | 115,83 € | |
| 4 x 600W + Heating | 230 V | IT | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | IT | 4 x 16A 230V | CVG05310 | SD12-216IT-H | 115,83 € | |
| 4 x 600W + Heating | 230 V | EU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | EU | 4 x 16A 230V | CVG00343 | SD122-16-EU-H | 115,83 € | |
| 4 x 600W | 230 V | UK | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | UK | 4 x 16A 230V | CVG05311 | SD122-16-UK-/ | 120,00 € | |
| 4 x 600W + Heating | 230 V | UK | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 2300W | UK | 4 x 16A 230V | CVG05312 | SD12-216UK-H | 128,33 € | |
| 6 x 600W | 230 V | AU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | AU | 6 x 16A 230V | CVG05313 | SD152-32-AU-/ | 132,50 € | |
| 6 x 600W | 230 V | BR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | BR | 6 x 16A 230V | CVG05315 | SD152-32-BR-/ | 132,50 € | |
| 6 x 600W | 230 V | CH | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | CH | 6 x 16A 230V | CVG05317 | SD15-232CH-/ | 132,50 € | |
| 6 x 600W | 230 V | FR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | FR | 6 x 16A 230V | CVG05319 | SD152-32-FR-/ | 132,50 € | |
| 6 x 600W | 230 V | IT | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | IT | 6 x 16A 230V | CVG05321 | SD152-32-IT-/ | 132,50 € | |
| 6 x 600W | 230 V | EU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | EU | 6 x 16A 230V | CVG00344 | SD152-32-EU-/ | 132,50 € | |
| 6 x 600W + Heating | 230 V | AU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | AU | 6 x 16A 230V | CVG05314 | SD15-232AU-H | 140,83 € | |
| 6 x 600W + Heating | 230 V | BR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | BR | 6 x 16A 230V | CVG05316 | SD15-232BR-H | 140,83 € | |
| 6 x 600W + Heating | 230 V | CH | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | CH | 6 x 16A 230V | CVG05318 | SD15-232CH-H | 140,83 € | |
| 6 x 600W + Heating | 230 V | FR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | FR | 6 x 16A 230V | CVG05320 | SD15-232FR-H | 140,83 € | |
| 6 x 600W + Heating | 230 V | IT | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | IT | 6 x 16A 230V | CVG05322 | SD15-232IT-H | 140,83 € | |
| 8 x 600W | 230 V | AU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | AU | 8 x 16A 230V | CVG05325 | SD172-32-AU-/ | 140,83 € | |
| 8 x 600W | 230 V | BR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | BR | 8 x 16A 230V | CVG05327 | SD172-32-BR-/ | 140,83 € | |
| 8 x 600W | 230 V | CH | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | CH | 8 x 16A 230V | CVG05329 | SD17-232CH-/ | 140,83 € | |
| 8 x 600W | 230 V | FR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | FR | 8 x 16A 230V | CVG05331 | SD172-32-FR-/ | 140,83 € | |
| 8 x 600W | 230 V | IT | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | IT | 8 x 16A 230V | CVG05333 | SD172-32-IT-/ | 140,83 € | |
| 8 x 600W | 230 V | EU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | EU | 8 x 16A 230V | CVG00346 | SD172-32-EU-/ | 140,83 € | |
| 6 x 600W + Heating | 230 V | EU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | EU | 6 x 16A 230V | CVG00345 | SD152-32-EU-H | 140,83 € | |
| 6 x 600W | 230 V | UK | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | UK | 6 x 16A 230V | CVG05323 | SD152-32-UK-/ | 149,17 € | |
| 8 x 600W + Heating | 230 V | AU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | AU | 8 x 16A 230V | CVG05326 | SD17-232AU-H | 149,17 € | |
| 8 x 600W + Heating | 230 V | BR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | BR | 8 x 16A 230V | CVG05328 | SD17-232BR-H | 149,17 € | |
| 8 x 600W + Heating | 230 V | CH | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | CH | 8 x 16A 230V | CVG05330 | SD17-232CH-H | 149,17 € | |
| 8 x 600W + Heating | 230 V | FR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | FR | 8 x 16A 230V | CVG05332 | SD172-32-FR-H | 149,17 € | |
| 8 x 600W + Heating | 230 V | IT | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | IT | 8 x 16A 230V | CVG05334 | SD17-232IT-H | 149,17 € | |
| 8 x 600W + Heating | 230 V | EU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | EU | 8 x 16A 230V | CVG00347 | SD172-32-EU-H | 149,17 € | |
| 6 x 600W + Heating | 230 V | UK | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | UK | 6 x 16A 230V | CVG05324 | SD152-32-UK-H | 157,50 € | |
| 8 x 600W | 230 V | UK | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | UK | 8 x 16A 230V | CVG05335 | SD172-32-UK-/ | 161,67 € | |
| 12 x 600W (3-phase) | 400 V | AU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | AU | 12 x 16A 230V | CVG05349 | SD204-48-AU-/ | 165,83 € | |
| 12 x 600W (3-phase) | 400 V | BR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | BR | 12 x 16A 230V | CVG05351 | SD204-48-BR-/ | 165,83 € | |
| 12 x 600W (3-phase) | 400 V | CH | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | CH | 12 x 16A 230V | CVG05353 | SD20-448CH-/ | 165,83 € | |
| 12 x 600W (3-phase) | 400 V | FR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | FR | 12 x 16A 230V | CVG05355 | SD204-48-FR-/ | 165,83 € | |
| 12 x 600W (3-phase) | 400 V | IT | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | IT | 12 x 16A 230V | CVG05357 | SD204-48-IT-/ | 165,83 € | |
| 12 x 600W (3-phase) | 400 V | EU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | EU | 12 x 16A 230V | CVG00349 | SD204-48-EU-/ | 165,83 € | |
| 8 x 600W + Heating | 230 V | UK | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 7360W | UK | 8 x 16A 230V | CVG05336 | SD17-232UK-H | 170,00 € | |
| 12 x 600W | 230 V | AU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | AU | 12 x 16A 230V | CVG05337 | SD202-48-AU-/ | 174,17 € | |
| 12 x 600W | 230 V | BR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | BR | 12 x 16A 230V | CVG05339 | SD202-48-BR-/ | 174,17 € | |
| 12 x 600W | 230 V | CH | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | CH | 12 x 16A 230V | CVG05341 | SD20-248CH-/ | 174,17 € | |
| 12 x 600W | 230 V | FR | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | FR | 12 x 16A 230V | CVG05343 | SD202-48-FR-/ | 174,17 € | |
| 12 x 600W | 230 V | IT | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | IT | 12 x 16A 230V | CVG05345 | SD202-48-IT-/ | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | AU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | AU | 12 x 16A 230V | CVG05350 | SD20-448AU-H | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | BR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | BR | 12 x 16A 230V | CVG05352 | SD20-448BR-H | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | CH | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | CH | 12 x 16A 230V | CVG05354 | SD20-448CH-H | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | FR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | FR | 12 x 16A 230V | CVG05356 | SD204-48-FR-H | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | IT | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | IT | 12 x 16A 230V | CVG05358 | SD20-448IT-H | 174,17 € | |
| 12 x 600W | 230 V | EU | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | EU | 12 x 16A 230V | CVG00348 | SD202-48-EU-/ | 174,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | EU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | EU | 12 x 16A 230V | CVG00351 | SD204-48-EU-H | 174,17 € | |
| 12 x 600W + Heating | 230 V | AU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | AU | 12 x 16A 230V | CVG05338 | SD20-248AU-H | 182,50 € | |
| 12 x 600W + Heating | 230 V | BR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | BR | 12 x 16A 230V | CVG05340 | SD20-248BR-H | 182,50 € | |
| 12 x 600W + Heating | 230 V | CH | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | CH | 12 x 16A 230V | CVG05342 | SD20-248CH-H | 182,50 € | |
| 12 x 600W + Heating | 230 V | FR | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | FR | 12 x 16A 230V | CVG05344 | SD20-248FR-H | 182,50 € | |
| 12 x 600W + Heating | 230 V | IT | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | IT | 12 x 16A 230V | CVG05346 | SD20-248IT-H | 182,50 € | |
| 12 x 600W + Heating | 230 V | EU | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | EU | 12 x 16A 230V | CVG00350 | SD202-48-EU-H | 182,50 € | |
| 12 x 600W (3-phase) | 400 V | UK | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | UK | 12 x 16A 230V | CVG05359 | SD204-48-UK-/ | 190,83 € | |
| 12 x 600W | 230 V | UK | IP40 | No | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | UK | 12 x 16A 230V | CVG05347 | SD202-48-UK-/ | 199,17 € | |
| 12 x 600W (3-phase) + Heating | 400 V | UK | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | UK | 12 x 16A 230V | CVG05360 | SD204-48-UK-H | 199,17 € | |
| 12 x 600W + Heating | 230 V | UK | IP40 | Yes | 24h timer with 36h power reserve, 30 min settting, Grässlin | 23 x 30 x 11 cm | 11040W | UK | 12 x 16A 230V | CVG05348 | SD20-248UK-H | 207,50 € |
