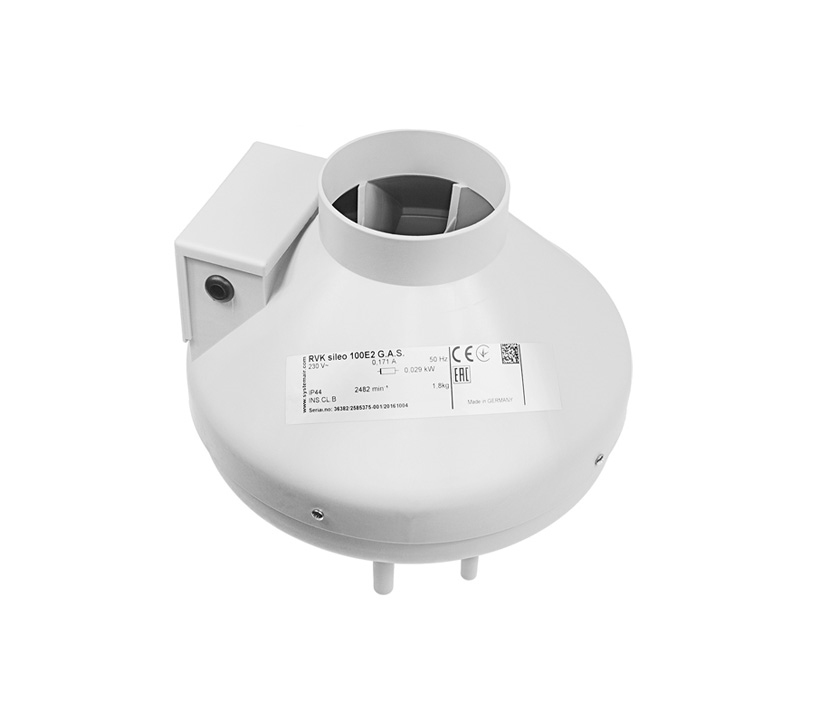

The Systemair RVK fans are the standard to which all grow room fans are measured. Made in Germany, engineered to last. The RVK fans are versatile - they can be used as an intake fan to the grow room or an extractor fan from the grow room, though we recommend using the K Fan Range as the grow room extractor fan to ensure a totally sealed grow room extraction set up and avoid any odour leaks, and using the RVK as an inlet fan into the grow space. Alternatively, the RVK can be coupled to the DiffuseAir to offer a total ventilation system. The RVK fan easily connects to carbon filters and silencers and runs quietly with low vibrations. RVK fans are speed controllable with Triac or Voltage and easy to install anywhere in the grow room set up with a mounting bracket included.
Thermal motor protection
High quality and maintenance free
Speed controllable with triac or voltage
Dynamically balanced impeller - reduced vibration and noise
Energy efficient
Made in Germany
Suitable to ventilate damp and wet rooms - IP44 rated
Backwards curved motorised impeller

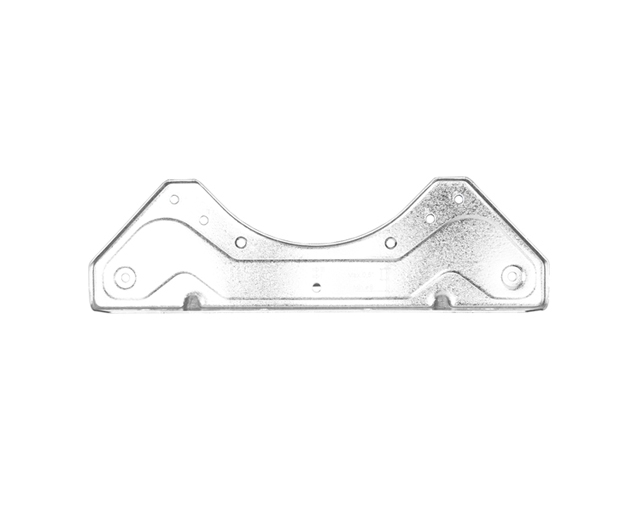

Mounting bracket included
Durable 30% fibreglass reinforced polypropylene casing
Built to run 24/7 with no issues
Variant | Power (W) | Voltage (V) | Flange diameter | Airflow maximum | Motor | Airflow maxium with filter | Pressure drop with filter | ID | Vendor ID | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
100 A1 | 29 W | 230 V | 100 mm | 184 m3/h | AC | 138 m3/h | 52 Pa | CVG02566 | RVK100 | 93,30 € | |
125 A1 | 29 W | 230 V | 125 mm | 220 m3/h | AC | 160 m3/h | 58 Pa | CVG03063 | RVK125 | 93,30 € | |
160 A1 | - | - | - | - | - | - | - | CVG05972 | RVK160 | 102,50 € | |
125 L1 | 58 W | 230 V | 125 mm | 323 m3/h | AC | 240 m3/h | 93 Pa | CVG03064 | RVK125L | 102,50 € | |
150 A1 | 59 W | 230 V | 150 mm | 428 m3/h | AC | 330 m3/h | 115 Pa | CVG03065 | RVK150 | 102,50 € | |
160 L1 | - | - | - | - | - | - | - | CVG05973 | RVK160L | 118,00 € | |
150 L1 | 109 W | 230 V | 150 mm | 720 m3/h | AC | 580 m3/h | 130 Pa | CVG03066 | RVK150L | 118,00 € | |
200 A1 | 104 W | 230 V | 200 mm | 796 m3/h | AC | 705 m3/h | 56 Pa | CVG03067 | RVK200 | 118,00 € | |
250 A1 | 109 W | 230 V | 250 mm | 860 m3/h | AC | 730 m3/h | 106 Pa | CVG03069 | RVK250 | 120,90 € | |
200 L1 | 153 W | 230 V | 200 mm | 1008 m3/h | AC | 815 m3/h | 145 Pa | CVG03068 | RVK200L | 157,00 € | |
250 L1 | 159 W | 230 V | 250 mm | 1080 m3/h | AC | 910 m3/h | 135 Pa | CVG03070 | RVK250L | 160,50 € | |
315 A1 | 226 W | 230 V | 315 mm | 1361 m3/h | AC | 1125 m3/h | 210 Pa | CVG03071 | RVK315 | 245,10 € |
