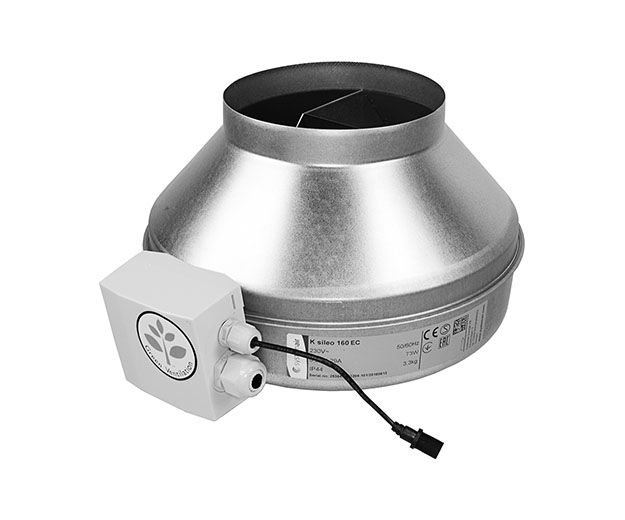

Systemair K Fans Series is made in Europe, custom designed to work as a grow room extractor fan.
K Fans offer incredible durability, similar to the RVK fans, due to durable German engineering and rigorous quality testing. The K Fan series are quiet and sealed to prevent any odour leaks from your grow room environment. K Fans are available with both AC and EC motors, both motors have thermal motor protection. The AC fan range has also the Rated IP55 to work in humid environments.
Rated IP55 to work in humid environmentsSustemair K Fans EC range uses state of the art EC technology which makes the EC Fans more powerful and over 50% more energy efficient than standard AC fans, as well as quieter and release no humming sounds even not at low speed. EC fans can be precisely controlled with digital controllers like the GAS EC Controller or Gas Balancer. The K AC Fans offer incredible air flow under pressure as well as a fan that will last years of continuous use. They can be controlled by triac, step transformers or frequency controllers.
NB! Fans do not include Plug.
| Variant | Power (W) | Voltage (V) | Flange diameter | Airflow maximum | Motor | Airflow maxium with filter | Pressure drop with filter | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 M - AC | 31 W | 230 V | 100 mm | 180 m3/h | AC | 133 m3/h | 48 Pa | CVG03078 | K100M | 113,40 € | |
| 125 M - AC | 28 W | 230 V | 125 mm | 187 m3/h | AC | 146 m3/h | 48 Pa | CVG03080 | K125M | 116,50 € | |
| 160 M - AC | - | - | - | - | - | - | - | CVG05808 | K160M | 131,10 € | |
| 100 XL - AC | 52 W | 230 V | 100 mm | 285 m3/h | AC | 218 m3/h | 90 Pa | CVG03079 | K100XL | 131,10 € | |
| 125 XL - AC | 53 W | 230 V | 125 mm | 359 m3/h | AC | 249 m3/h | 98 Pa | CVG03081 | K125XL | 131,10 € | |
| 150 M - AC | 53 W | 230 V | 150 mm | 464 m3/h | AC | 319 m3/h | 118 Pa | CVG03082 | K150M | 131,10 € | |
| 160 XL - AC | - | - | - | - | - | - | - | CVG05809 | K160XL | 154,00 € | |
| 150 XL - AC | 100 W | 230 V | 150 mm | 724 m3/h | AC | 555 m3/h | 125 Pa | CVG03083 | K150XL | 154,00 € | |
| 200 M - AC | 102 W | 230 V | 200 mm | 760 m3/h | AC | 700 m3/h | 52 Pa | CVG03084 | K200M | 156,10 € | |
| 250 M - AC | 103 W | 230 V | 250 mm | 788 m3/h | AC | 675 m3/h | 95 Pa | CVG03086 | K250M | 159,20 € | |
| 200 L - AC | 145 W | 230 V | 200 mm | 965 m3/h | AC | 800 m3/h | 143 Pa | CVG03085 | K200L | 190,40 € | |
| 250 L - AC | 145 W | 230 V | 250 mm | 979 m3/h | AC | 820 m3/h | 120 Pa | CVG03087 | K250L | 190,40 € | |
| 315 M - AC | 231 W | 230 V | 315 mm | 1340 m3/h | AC | 1060 m3/h | 190 Pa | CVG03088 | K315M | 254,90 € | |
| 100 - EC | 83 W | 230 V | 100 mm | 312 m3/h | EC | 277 m3/h | 118 Pa | CVG02567 | K100EC | 275,70 € | |
| 125 - EC | 83 W | 230 V | 125 mm | 482 m3/h | EC | 358 m3/h | 165 Pa | CVG03072 | K125EC | 279,80 € | |
| 160 - EC | - | - | - | - | - | - | - | CVG05807 | K160EC | 291,30 € | |
| 150 - EC | 84 W | 230 V | 150 mm | 598 m3/h | EC | 525 m3/h | 110 Pa | CVG03073 | K150EC | 291,30 € | |
| 200 - EC | 75 W | 230 V | 200 mm | 744 m3/h | EC | 610 m3/h | 103 Pa | CVG03074 | K200EC | 307,90 € | |
| 250 - EC | 120 W | 230 V | 250 mm | 1033 m3/h | EC | 830 m3/h | 118 Pa | CVG03075 | K250EC | 394,30 € | |
| 315 - EC | 166 W | 230 V | 315 mm | 1415 m3/h | EC | 1145 m3/h | 125 Pa | CVG03076 | K315EC | 588,80 € | |
| 315 L - EC | 340 W | 230 V | 315 mm | 1732 m3/h | EC | 1600 m3/h | 125 Pa | CVG03077 | K315ECL | 774,00 € |
