LUMATEK Digital Panel PLUS 2.0 (HID + LED)
From:
565,80 €
LUMATEK Attis 200W
The higher specification Lumatek full spectrum 200W LED is a light-weight fixture producing high levels of PPF of 460 µmol/s and a very high efficacy of up to 2.3 µmol/J, covering perfectly up to 0,8 x 0,8 m grow areas. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
LUMATEK Attis 300W
The higher specification Lumatek full spectrum 300W LED is a light-weight fixture producing high levels of PPF of 690 µmol/s and a very high efficacy of up to 2.3 µmol/J, covering perfectly up to 1 x 1 m grow areas. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
LUMATEK Attis 200W Pro
The higher specification Lumatek full spectrum 200W Pro LED is a light-weight fixture producing high levels of PPF of 508 µmol/s and a very high efficacy of up to 2.5 µmol/J, covering perfectly up to 0,8 x 0,8 m grow areas. The fixture efficacy will vary depending on the Input Voltage used.
The new Pro line of Attis is built using high quality Lumatek controllable drivers and latest generation higher efficiency top bin White, Red & Far Red Diodes. The upgraded diodes are now more evenly distributed across the whole length of the light bars resulting in a larger and more even light spread and footprint.
Other new features of this Pro line include: IP65 rating; Clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes and extra corrosion resistance; And new Control capability with the Lumatek Control Panel Plus 2.0 (not included, available as add-on product). Featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
LUMATEK Attis 300W Pro
The higher specification Lumatek full spectrum 300W Pro LED is a light-weight fixture producing high levels of PPF of 816 µmol/s and a very high efficacy of up to 2.7 µmol/J, covering perfectly up to 1 x 1 m grow areas. The fixture efficacy will vary depending on the Input Voltage used.
The new Pro line of Attis is built using high quality Lumatek controllable drivers and latest generation higher efficiency top bin White, Red & Far Red Diodes. The upgraded diodes are now more evenly distributed across the whole length of the light bars resulting in a larger and more even light spread and footprint.
Other new features of this Pro line include: IP65 rating; Clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes and extra corrosion resistance; And new Control capability with the Lumatek Control Panel Plus 2.0 (not included, available as add-on product). Featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Link to official Lumatek product Page
Universal Control Systems Compatibility

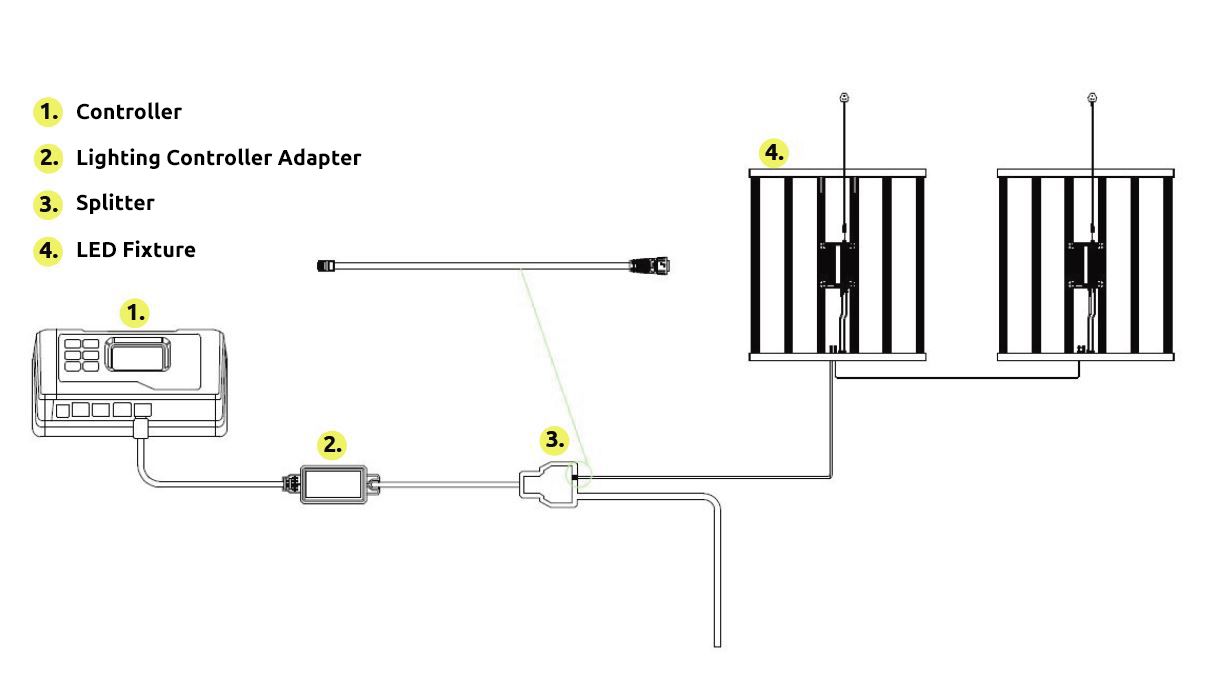

Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.

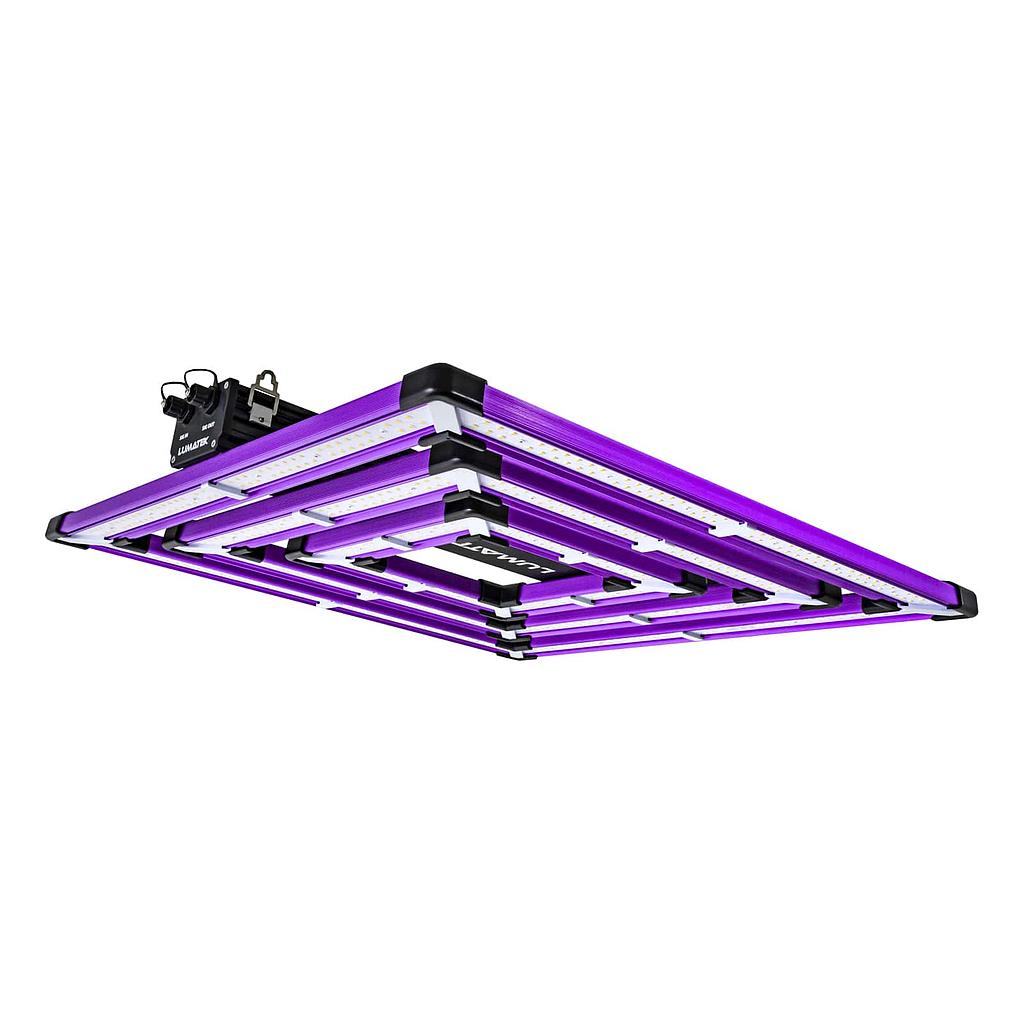

Lumatek's Attis - a full spectrum LED fixture, with compact passive-cooled design, top bin Lumled (diodes W/R/FR)
and a dimmable driver.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. The Attis full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide sole-source or supplemental grow lighting for propagation, vegetative and flowering growth periods of indoor-grown crops.
They will create a uniform spread of light at short distance from the crop enabling good penetration of canopy without hotspots and excessive heat. The innovative heat sink and use of passive natural convection has eliminated the need for a fan, reducing noise output and significantly increasing the life span of the fixture as it has no moving parts.
For different cultivars, propagation and vegetative growth periods this agile fixture may be dimmed without losing efficiency. The high efficiency and low powered LED configuration reduces the temperature of the LEDs increasing the output and improving light maintenance.
The Attis grow light solutions use a blend of white, deep red & far red LEDs to produce a highly efficient light source calibrated to provide high intensity, stable and uniform output for optimal light absorption.
Previous generations of LED grow lights used a mixture of royal blue and deep red LEDs to target chlorophyll absorption peaks. Whilst these solutions worked adequately they missed out important spectra for quality plant growth, lacked penetration through dense canopies and provided poor visibility for inspecting and maintaining grow rooms.
The innovative design and advancement in LED technology has produced a high powered LED grow light with passive convection cooling. This fan-less design means no moving parts so the Attis fixtures are extremely robust with a long life span and operate silently.
Lumatek Pro Line can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
| Variant | Power (W) | Voltage (V) | Current (A) | PPF (µmol/s) | PPE (µmol/J) | Colour temperature (K) | Lifespan (h) | Beam Angle | Power factor | Dimming | Controllable | Dimming range | Cooling | IP Rating | Spectrum | Light Source | Dimensions | Weight | Warranty | Controller | Footprint | Includes | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 W | 300 W | 230 V | 1,44 A | 690 µmol/s | 2,3 µmol/J | 4000 K | 60 000 h | 110° | 0,95 | Yes | No | 20% - 40% - 60% - 80% -100% (Dimmer incl.) | Passive | IP20 | Full Spectrum | Lumled Diodes (W/R/FR) | 55,82 x 55,82 x 8,68 cm | 5,2 kg | 3 Years | - | 1 x 1 m | 2 x Metal Cable Hangers, 1 x Power Cable, 1 x ATS300W LED Fixture (Incl. LED Driver and Dimmer) | CVG03856 | LUMLED300 | 552,30 € | |
| 200 W | 200 W | 230 V | 0,87 A | 460 µmol/s | 2,3 µmol/J | 4000 K | 60 000 h | 110° | 0,95 | Yes | No | 20% - 40% - 60% - 80% -100% (Dimmer incl.) | Passive | IP20 | Full Spectrum | Lumled Diodes (W/R/FR) | 50,8 x 50,8 x 8,6 cm | 3,9 kg | 3 Years | - | 0,8 x 0,8 m | 2 x Metal Cable Hangers, 1 x Power Cable, 1 x 200W LED Fixture (Incl. LED Driver and Dimmer) | CVG03857 | LUMLED200 | 399,80 € | |
| 300W Pro | 300 W | 230 V | 0,4-1,35 A | 816 µmol/s | 2,7 µmol/J | 4000 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 660nm Red & 730nm Far Red Diodes , Higher Spec 4000K White Diodes | 55,95 x 55,95 x 7,16 cm | 5,2 kg | 3 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1 x 1 m | 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 1 x ATS300W Pro LED Fixture with Driver, 1 x Power Cable 230V | CVG05862 | LUMLED300P | 621,10 € | |
| 200W Pro | 200 W | 230 V | 0,27-0,92 A | 508 µmol/s | 2,50 µmol/J | 4000 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 660nm Red & 730nm Far Red Diodes , Higher Spec 4000K White Diodes | 52,4 x 52,4 x 7,16 cm | 4 kg | 3 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 0,8 x 0,8 m | 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 1 x Power Cable 230V, 1 x ATS200W Pro LED Fixture with Driver | CVG05863 | LUMLED200P | 453,90 € |
