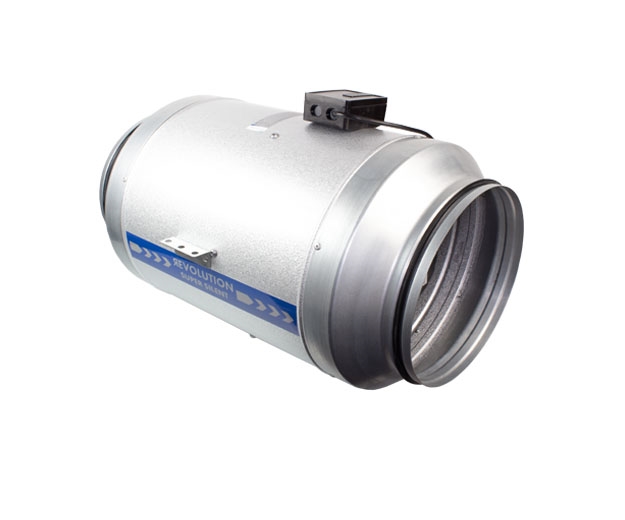

Systemair Revolution Fan Brackets
From:
12,70 €
Systemair Revolution Fan range is quite simply a cut above the competition.
With a free running, double balanced axial impellor with matching guide veins, coupled to powerful efficient German motors make these fans powerful and more efficient.
The Revolution EC fan uses state of the art EC technology to make it more powerful and over 50% more efficient than standard AC fans with no humming or buzzing at low speeds. These fans are the most efficient powerful duct fans of their size. They can be precisely controlled with an EC Controller to get complete control over the grow room environment.
The Revolution AC version offers greater air flow and performance under pressure. They can be controlled by Triac, Step transformers or frequency controllers.
Silenced fan range is a class apart - the most efficient inline fans, wrapped in an engineered silenced body. The custom-built acoustic housing halves the noise of the standard fan without reducing the powerful air flow - even with the normal pressures of a grow room environment. They are engineered to be sealed, powerful and silent.
No wall mounting bracket included, available as separate product.
| Variant | Power (W) | Voltage (V) | Length | Flange diameter | Airflow maximum | Motor | Airflow maxium with filter | Pressure drop with filter | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 Stratos AC | 28 W | 230 V | 412 mm | 150 mm | 439 m3/h | AC | 318 m3/h | 61 Pa | CVG02568 | EU-RV150AC | 212,70 € | |
| 160 Stratos AC | - | - | - | - | - | - | - | - | CVG05810 | EU-RV160AC | 212,70 € | |
| 200 Stratos AC | 72 W | 230 V | 245 mm | 200 mm | 947 m3/h | AC | 710 m3/h | 123 Pa | CVG03089 | EU-RV200AC | 221,90 € | |
| 250 Stratos AC | 200 W | 230 V | 300 mm | 250 mm | 2038 m3/h | AC | 1660 m3/h | 180 Pa | CVG03090 | EU-RV250AC | 349,10 € | |
| 160 Vector EC | - | - | - | - | - | - | - | - | CVG05811 | EU-RV160EC | 436,20 € | |
| 150 Vector EC | 76 W | 230 V | 412 mm | 150 mm | 796 m3/h | EC | 655 m3/h | 158 Pa | CVG03091 | EU-RV150EC | 436,20 € | |
| 200 Vector EC | 117 W | 230 V | 245 mm | 200 mm | 1332 m3/h | EC | 1005 m3/h | 190 Pa | CVG03092 | EU-RV200EC | 479,20 € | |
| 250 Vector EC | 126 W | 230 V | 300 mm | 250 mm | 1822 m3/h | EC | 1390 m3/h | 138 Pa | CVG03093 | EU-RV250EC | 520,90 € | |
| 250L Vector EC | 165 W | 230 V | 300 mm | 250 mm | 2077 m3/h | EC | 1610 m3/h | 172 Pa | CVG03094 | EU-RV250ECL | 572,90 € | |
| 315 Stratos AC - High Power | 332 W | 230 V | 676 mm | 315 mm | 3812 m3/h | AC | 2100 m3/h | 180 Pa | CVG03104 | EU-RV315AC | 805,00 € | |
| 315 Vector EC - High Power | 528 W | 230 V | 407 mm | 315 mm | 3784 m3/h | EC | 2800 m3/h | 290 Pa | CVG03106 | EU-RV315EC | 1 196,00 € | |
| 355 Stratos AC - High Power | 326 W | 230 V | 632 mm | 355 mm | 4212 m3/h | AC | 2900 m3/h | 155 Pa | CVG03105 | EU-RV355AC | 1 219,00 € | |
| 355 Vector EC - High Power | 738 W | 230 V | 632 mm | 355 mm | 5929 m3/h | EC | 4250 m3/h | 300 Pa | CVG03107 | EU-RV355EC | 1 598,50 € |
