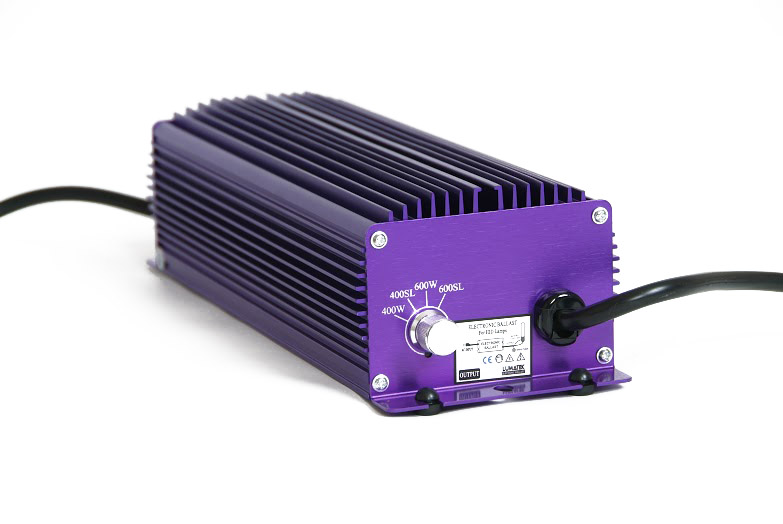

LUMATEK dimmable electronic ballasts are the most advanced lighting solution for modern horticulture.
Small, compact, and completely silent these electronic ballasts are able to deliver more lumens while using less electricity than standard magnetic ballasts. Unlike traditional 'core and coil' magnetic ballasts, Lumatek ballasts are microprocessor-controlled and able to evaluate and compensate for the actual state of lamp degradation and voltage fluctuations in power supply from your local grid.
This means that Lumateks are able to provide a precise controlled output voltage to the lamp ensuring optimum PAR (Photosynthetic Active Radiation) levels are achieved. Lumatek products include Super Lumen and Multi-Watt Dimmable ranges: 250W, 400W, 600W, dual 600W, 750W and 1000W.
Dimmable electronic ballast
Boost output by 10% by switching to SL-"Super Lumens"
No audible noise, no flicker
Capable of operating in relative humidity of 0% to 90%, non-condensing
Graduated Fin Aluminium
Operating in high frequency
Temperature for full load operation (-25~40°C)
| Model | Power (W) | Voltage (V) | Current (A) | Voltage range (V) | Dimming | Dimming range | Suitable bulbs | Warranty | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600W 230V - Dimmable & Controllable | 630 W | 230 V | 2,7 A | 175-275 V | Yes | 250W - 400W - 600W- 660W | 400W-600W HPS or MH | 5 Years | CVG02421 | LUMBC002 | 154,99 € | |
| 1000W 230V - Dimmable & Controllable | 1030 W | 230 V | 4,7 A | 175-275 V | Yes | 600W - 750W - 1000W - 1000SL (~10% boost) | 1000W-750W-600W HPS or 1000W-600W MH | 5 Years | CVG02422 | LUMBC005 | 249,99 € | |
| 250W 230V | 265 W | 230 V | 1,2 A | 175-275 V | Yes | 150W - 175W - 250W - 250SL (~10% boost) | 150W-175W- 250W HPS or MH | 5 Years | CVG00605 | LUMB0001 | 104,99 € | |
| 400W 230V | 440 W | 230 V | 1,9 A | 175-275 V | Yes | 250W - 250SL - 400W- 400SL (~10% boost) | 250W-400W HPS or MH | 5 Years | CVG00604 | LUMB0002 | 119,99 € | |
| 600W 230V | 630 W | 230 V | 2,7 A | 175-275 V | Yes | 250W - 400W - 600W- 660W | 400W-600W HPS or MH | 5 Years | CVG00602 | LUMB0003 | 154,99 € | |
| 1000W 230V | 1030 W | 230 V | 4,7 A | 175-275 V | Yes | 600W - 750W - 1000W - 1000SL (~10% boost) | 1000W-750W-600W HPS or 1000W-600W MH | 5 Years | CVG00606 | LUMB0006 | 249,99 € | |
| 600W 230V (TWIN) | 630 W | 230 V | 2,7 A | 175-275 V | Yes | 400W - 400SL - 600W - 600SL (~10% boost) | 400W-600W HPS or MH | 5 Years | CVG00603 | LUMB0004 | 264,99 € |
