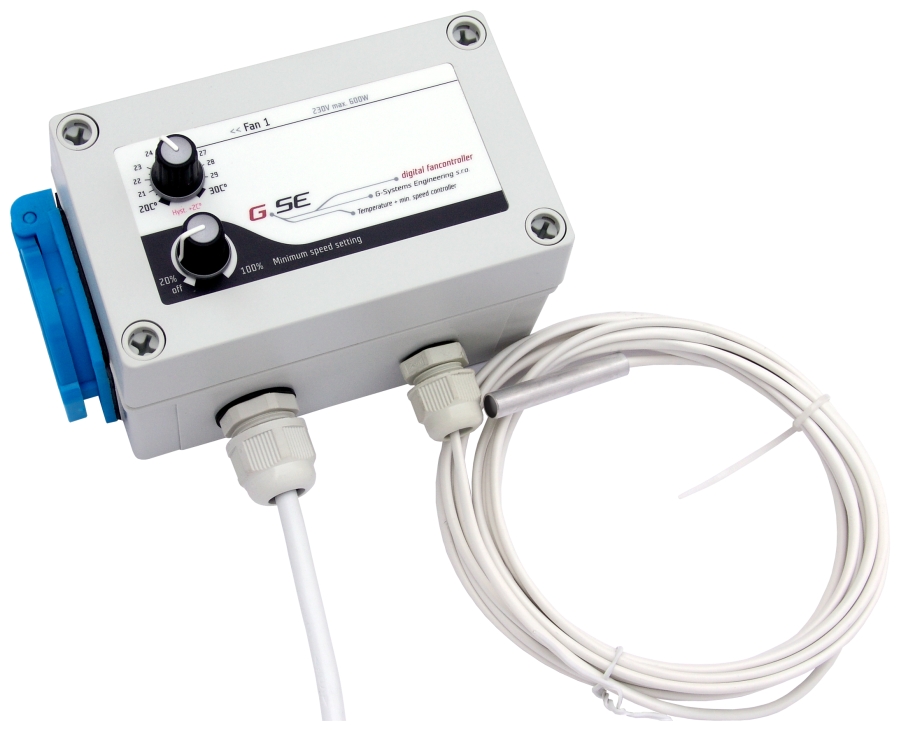

G-Systems temperature and minimum speed controller is a temperature dependent speed controller for ventilated rooms with one ore more fans.
The minimum speed controller keeps the temperature constantly and prevents to run under the minimum-speed set. It can be easily controlled, adjusting the required temperature and the minimum speed with two knobs.
The controller comes as a finished part and is ready to use. This reliable fan controller comes as complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4m long cable and can be extended up to 50 meters.
| Variant | Voltage (V) | Frequency | Protection class | Speed setting range | Temperature setting range | Dimensions | Power Plug | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AC | 230 V | 50-60 Hz | IP54 | 20% - 100% | 20C° - 30C° | 16 x 10 x 9 cm | EU | CVG03413 | FC012-EU-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | AU | CVG05276 | FC012-AU-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | BR | CVG05278 | FC012-BR-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | CH | CVG05280 | FC012-CH-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | FR | CVG05283 | FC012-FR-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | IT | CVG05285 | FC012-IT-10-AC | 82,50 € | |
| AC | - | - | - | - | - | - | UK | CVG05287 | FC012-UK-10-AC | 86,67 € | |
| AC+EC | - | - | - | - | - | - | AU | CVG05277 | FC012-AU-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | BR | CVG05279 | FC012-BR-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | CH | CVG05281 | FC012-CH-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | EU | CVG05282 | FC012-EU-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | FR | CVG05284 | FC012-FR-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | IT | CVG05286 | FC012-IT-10-ACEC | 99,17 € | |
| AC+EC | - | - | - | - | - | - | UK | CVG05288 | FC012-UK-10-ACEC | 103,33 € |
