GSE EC Temperature - min./max. Speed controller (1fan)

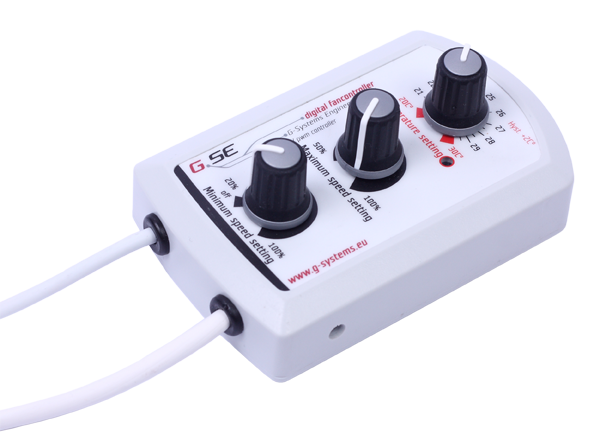

G-Systems Engineering EC fan controller lets to set easily the temperature, minimum- and maximum speed with the three knobs.
The EC fan controller get supplied with a 4 m long cable with a 3.5 mm 4-pole stereo jack connector to the fan and a 4 m long Temperature sensor. It comes as a ready-to- use product together with a power supply.
The output signal is 0-10V or on demand a PWM (pulse wide modulation) signal. If the EC-fan supports PWM signal the controller is able to run without power supply.
Includes: 4 m long sensor cables and power supply
For 1 Fan
Temperature: 20C° to 30C°
Minimum speed: off, 20% to -100%
Maximum speed: 100% to -50%
Size (HxWxH): 90 x 58 x 40 mm
Weight: 307 g
Voltage: 12VDC
Power: 10mA
Protection class: IP 20
| Variant | Voltage (V) | IP Rating | Sensor Cable | Speed setting range | Temperature setting range | Suitable fan | Dimensions | Weight | Power Plug | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EC Connector - RJ45 | - | - | - | - | - | - | - | - | without | CVG05197 | FC16-/-RJ-GSE | 65,83 € | |
| EC Connector - STJ35 | - | - | - | - | - | - | - | - | without | CVG05198 | FC16-/-ST-GSE | 65,83 € | |
| EC Connector - STJ35 | 230 V | IP20 | 4 m | 50-100 % | 20-30 C° | EC | 9 x 6 x 4 cm | 3 kg | EU/FR/CH | CVG01858 | FC16-EU-ST-GSE | 74,17 € | |
| EC Connector - RJ45 | 230 V | IP20 | 4 m | 50-100 % | 20-30 C° | EC | 9 x 6 x 4 cm | 3 kg | EU/FR/CH | CVG01859 | FC16-EU-RJ-GSE | 74,17 € | |
| EC Connector - RJ45 | - | - | - | - | - | - | - | - | Int | CVG05199 | FC16-INT-RJ-GSE | 78,33 € | |
| EC Connector - STJ35 | - | - | - | - | - | - | - | - | Int | CVG05200 | FC16-INT-ST-GSE | 78,33 € |
