GSE EC Temperature - Humidity - min. Speed controller

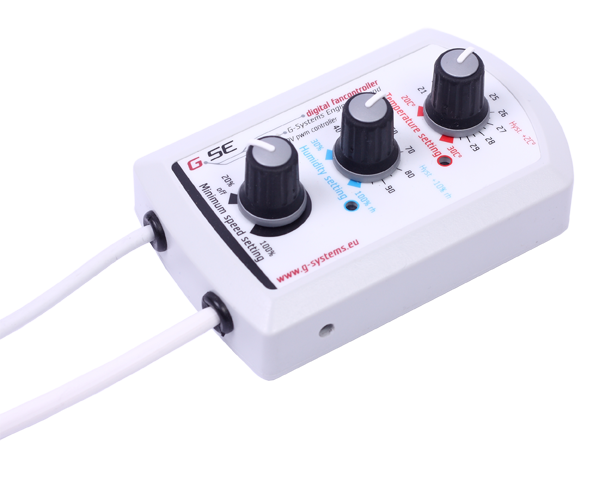

G-Systems Engineering EC fan controller lets to set easily the temperature, humidity and minimum speed with the three knobs.
The EC fan controller get supplied with a 4 m long cable with a 3.5 mm 4-pole stereo jack connector to the fan and a 4 m long Temperature sensor. It comes as a ready-to- use product together with a power supply.
The output signal is 0-10V or on demand a PWM (pulse wide modulation) signal. If the EC-fan supports PWM signal the controller is able to run without power supply.
Includes: 4 m long sensor cables and power supply
For 1 Fan
Temperature: 20C° to 30C°
Humidity: 30% - 100%
Minimum speed: off, 20% to -100%
Size (HxWxH): 90 x 58 x 40 mm
Weight: 307 g
Voltage: 12VDC
Power: 10mA
Protection class: IP 20
| Variant | Type | Voltage nominal (V) | Protection class | Sensor Cable | Suitable fan | Dimensions | Weight | Power Plug | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EC Connector - RJ45 | - | - | - | - | - | - | - | without | CVG05201 | FC17-/-RJ | 82,50 € | |
| EC Connector - STJ35 | - | - | - | - | - | - | - | without | CVG05202 | FC17-/-ST | 82,50 € | |
| EC Connector - STJ35 | Analogue | 12 V | IP20 | 4 m | EC | 9 x 6 x 4 cm | 3 kg | EU/FR/CH | CVG01856 | FC17-EU-ST | 82,50 € | |
| EC Connector - RJ45 | - | 12 V | IP20 | 4 m | EC | 9 x 6 x 4 cm | 3 kg | EU/FR/CH | CVG01857 | FC17-EU-RJ | 90,83 € | |
| EC Connector - RJ45 | - | - | - | - | - | - | - | Int | CVG05203 | FC17-INT-RJ | 95,00 € | |
| EC Connector - STJ35 | - | - | - | - | - | - | - | Int | CVG05204 | FC17-INT-ST | 95,00 € |
