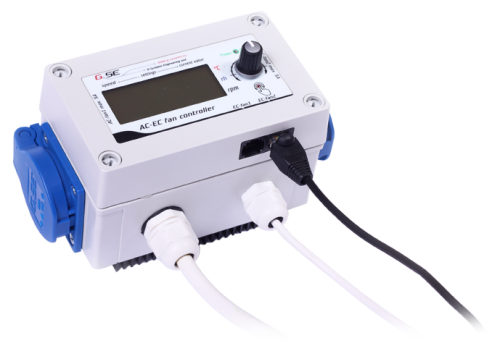

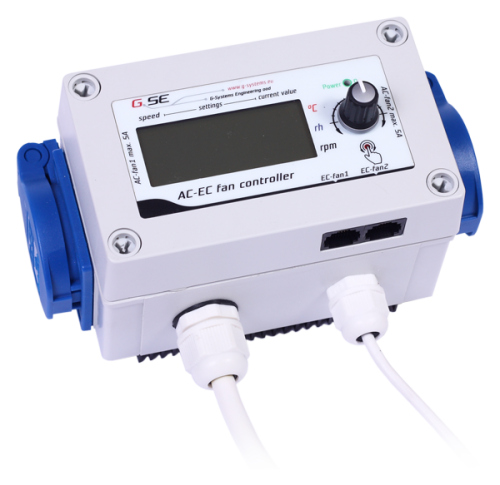

GSE fan controller with LCD screen for AC or EC fans is equipped with the rotary-push knob to allow a very fast setting of all the values and to read all the information's given.
Possible to set: actual set speed, temperature, humidity day/night, negative pressure of the intake fan and RPM (rounds per minute) of the exhaust fan. A built in light sensor will recognise the day/night modes. It let's to program 15 individual settings with single rotary-push button.

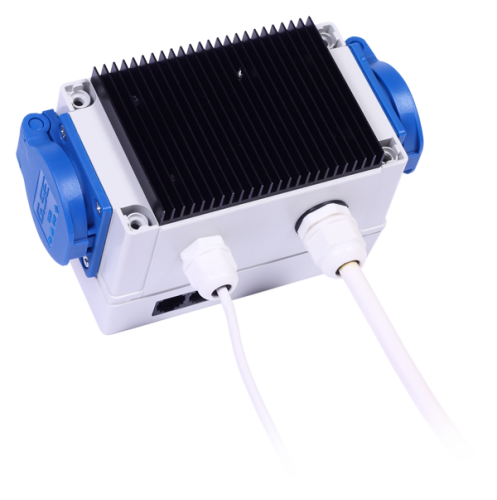

The controller has 2 x 5A/230V AC exits for the intake and exhaust fan as well 2 x RJ45 connector for EC fans. It let's to choose between 0-10 V or PWM (pulse wide modulation) signal. 2 x internal temperature sensors will prevent from the overheating of the heat sink and processor side. The AC/EC fan controller comes with 1,5 m power cable and 4 m sensor cable. Just plug 'n' play.
Temperature (day/night)
Temperature hysteresis (day/night)
Humidity (day/night)
Humidity hysteresis (day/night)
Minimum speed (day/night)
Maximum speed (day/night)
Negative pressure setting
Switch sensor level
Switch over time day/night
Graphic and digital display of speed rpm constant
Temperature display constant
Humidity display constant
Set point selectable not constant, over input keys
| Power (W) | Voltage (V) | Current (A) | Plugs & Sockets | Frequency | Humidity accuracy | Humidity setting range | Negative pressure setting range | Protection class | Sensor Cable | Speed setting range | Temperature Accuracy | Temperature setting range | Suitable fan | Dimensions | Cable | Power Plug | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 200 W | 230 V | 10 A | 2 pcs | 50-60 Hz | ±4,5%rh | 0-100% | 0% - 50% | IP54 | 4 m | 10% - 100% | 15C° - 35C° / Hyst 1 - 5C° | 15C° to 35C° | EC / AC | 16 x 11 x 9 cm | 1,5m | EU | CVG03415 | FC132-EU-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | AU | CVG05220 | FC132-AU-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | BR | CVG05221 | FC132-BR-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | CH | CVG05222 | FC132-CH-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | FR | CVG05223 | FC132-FR-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | IT | CVG05224 | FC132-IT-10-ACEC-GSE | 207,50 € | |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | UK | CVG05225 | FC132-UK-10-ACEC-GSE | 215,83 € |
