LUMATEK 650W Drivers for VF LED Range
From:
276,80 €
LUMATEK VF90W LED
Three 30W LED bars with 4000K White and 3000K Warm White diodes, with a total PPF output of 244 μmol/s and a 2.4 μmol/J Efficacy.
The fixture will require 650W Driver (sold separately) that can run up to 7 units of VF90W fixtures

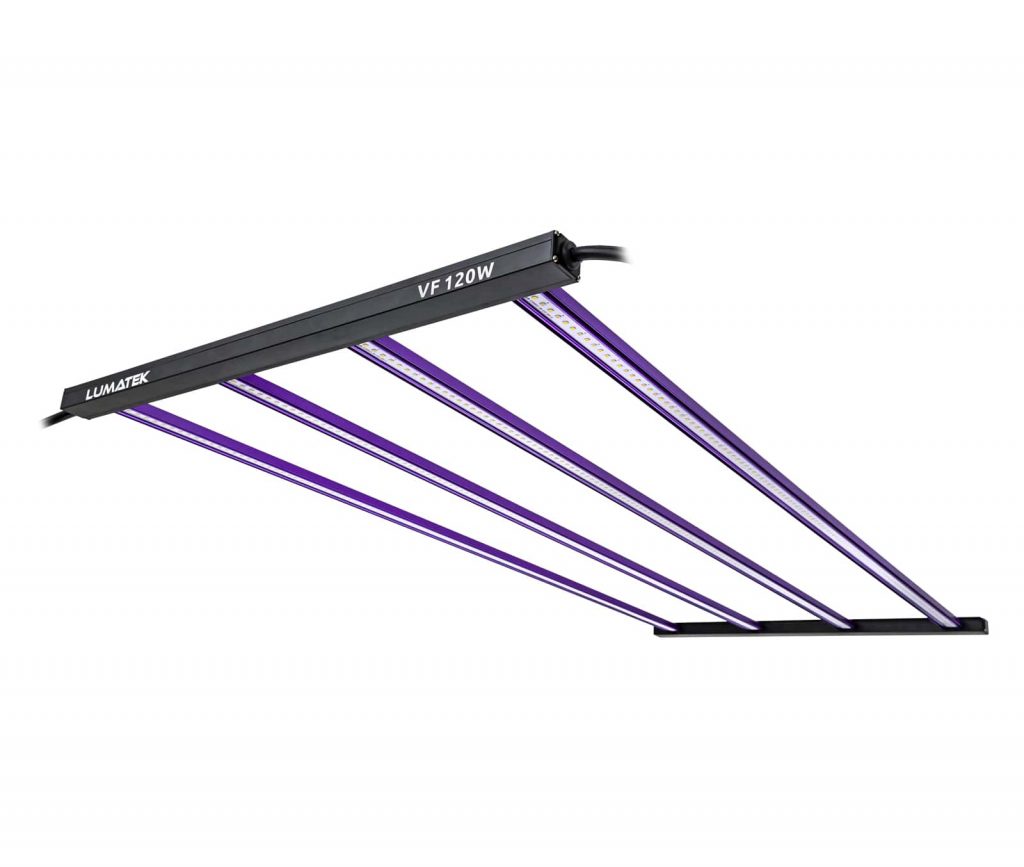

LUMATEK VF120W LED
Four 30W LED bars with 4000K White and 3000K Warm White diodes, with a total PPF output of 308 μmol/s and a 2.4 μmol/J Efficacy.
The fixture will require 650W Driver (sold separately) that can run up to 5 units of VF120W fixtures
The Vertical Farming Range (VF Range) is an ideal Led fixture for seedlings, clones and for any low PPFD target plants.
These versatile high efficacy fixtures are perfectly suitable for Vertical Farming applications. From propagation factories and nurseries, climate chambers, warehouse farms, containers, between others, the Lumatek VF range will deliver the adequate light quality spectral and photon flux levels needed.
The VF range includes the new cellar Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
The fixtures will require 650W Driver (sold separately) and can be dimmed with a 0-10V Light Dimmer (also sold separately) or externally controlled with the Digital Panel Plus 2.0 or any other Universal Controller 0-10V. Also, the daisy-chain driver connectivity is possible if you would like to add more units to your system so you can dim all fixture with a single dimmer.
For large facilities, where the 3-Phase electrical supply domains, a 400 Volts, 650W Driver is more suitable.
Universal Control Systems Compatibility

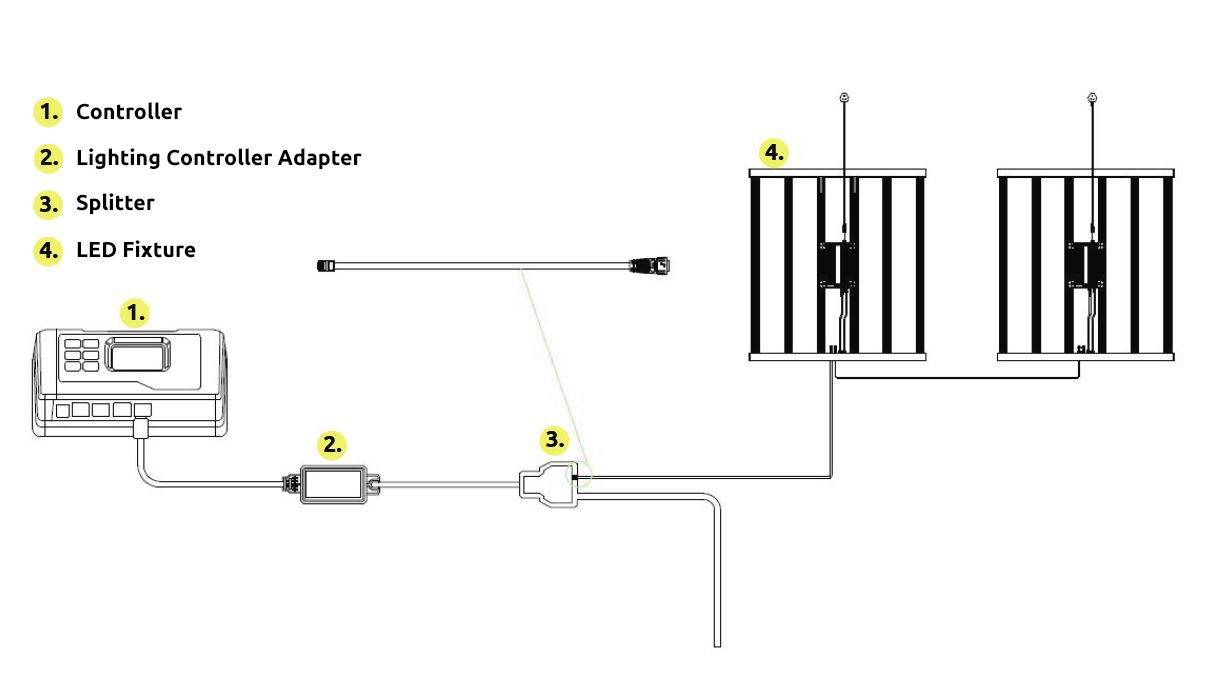

Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
| Variant | Power (W) | Voltage (V) | Input Power | PPF (µmol/s) | PPE (µmol/J) | Colour temperature (K) | Lifespan (h) | Beam Angle | Power factor | Dimming | Controllable | Dimming range | Cooling | IP Rating | Light Source | Dimensions | Weight | Warranty | Controller | Footprint | Qty of led bars | Driver | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 W | 90 W | 220-240V or 277-480V | 95W | 244 µmol/s | 2,4 µmol/J | 3600 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (not incl.) | Passive | IP65 | 4000K WHITE High Spec Diodes, 3000K WARM WHITE High Spec Diodes | 120,7 x 5,21 x 2,05 cm | 1,72 kg | 3 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,2 x 0,6 m | 3 x 30W | 650W VF Driver (not incl.), Runs up to 7 Fixtures | CVG05892 | LUMLED014 | 294,00 € | |
| 120 W | 120 W | 220-240V or 277-480V | 124 W | 308 µmol/s | 2,4 µmol/J | 3600 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (not incl.) | Passive | IP65 | 4000K WHITE High Spec Diodes, 3000K WARM WHITE High Spec Diodes | 120,7 x 5,21 x 2,05 cm | 2,1 kg | 3 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,2 x 0,6 m | 4 x 30W | 650W VF Driver (not incl.), Runs up to 5 Fixtures | CVG05893 | LUMLED015 | 325,90 € |
