The cable is suitable to dim the LUMATEK® ZEUS LED lights with GrowBase or GrowBase Pro as well as to use the sunrise & sunset function. It is compatible with the new version of LUMATEK® ZEUS LEDs with "LLT M12 push lock connector".

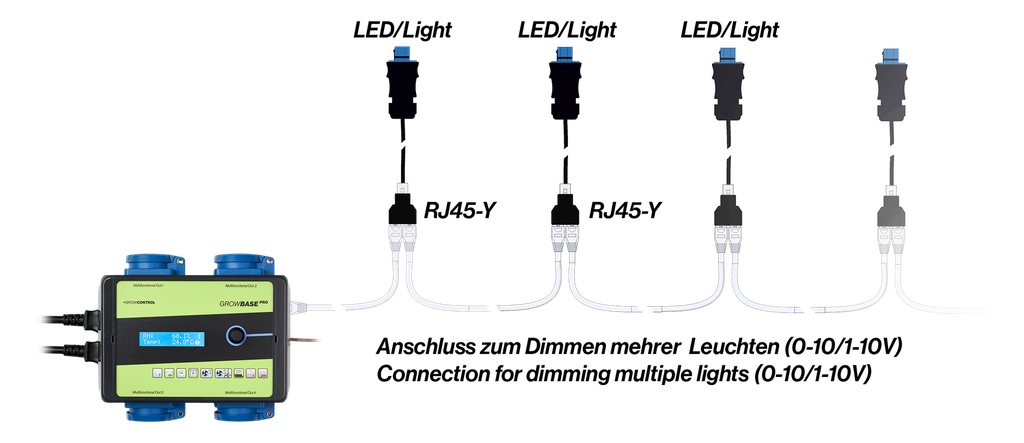

The cable is offered in standard lengths of 1 meter and 3 meters. The cable length of 1 meter is intended to be used to connect multiple LEDs in combination with RJ45 cables as well as RJ45 Y-adapters (Daisy chain, as shown on the second picture)
The cable length of 3 meters is intended to either control a single LED light or to connect the other LEDs with cables and adapters from another supplier.
Only two wires are connected in the cable. (Dim-/GND and Dim+/0-10V)
The LUMATEK® ZEUS series has a 0-10V input. This means that the LEDs can be switched off completely via the 0-10V signal. The mains supply to the LEDs therefore does not need to be switched off.
Other cable lengths are available upon request.
Made in Germany
Includes:
1x cable for luminaire dimming
Other pictured cables/adapters/articles are not included.
