LUMATEK ZEUS 1000W Pro
LED Fixture with 10 interchangeable LED bars is designed for 1,5 x 1,5 m coverage. The higher specification is a linear multi-light bar fixture with folding frame producing extremely high levels of PPF of 2925 µmol/s and a very high efficacy of up to 2.9 µmol/J. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
LUMATEK ZEUS 1000W Xtreme PPFD CO2
LED Fixture with 10 interchangeable LED bars is designed for 1,5 x 1,5 m coverage with Supplemental CO2 for optimal efficiency and results. The higher specification is a linear multi-light bar fixture producing extremely high levels of PPF of 2925 µmol/s and a very high efficacy of up to 2.9 umol/J. The fixture efficacy will vary depending on the Input Voltage used.
The use of CO2 with this fixture is not mandatory, however, if you choose to run it without CO2, we recommend a greater canopy distance to the light. This will ensure the optimal PPFD levels according to the grow stage. Using this last method the expected optimal coverage area gets to 1,8 x 1,8 m but with lower levels of PPFD intensity concentration.
Supplementation use of Carbon Dioxide (CO2) in your controlled environment can significantly improve the yield of your crop if used correctly. In general a good rule is that once you exceed 1000 µmol/s/m2 PPFD levels, you should be 1:1 with CO2 PPM – up to 1500. So at max PPFD = 1500 µmol/s/m2, CO2 would be 1500 PPM (a little lower, 1400 PPM may be the safest to start).
Link to official Lumatek product Page
LUMATEK Zeus 600W Pro 2.9
LED Fixture with 6 interchangeable LED bars is designed to cover perfectly 1,4 x 1,4 m for Flowering and
1,5 x 1,5 m for Vegetative. The higher specification is a linear multi-light bar fixture producing very high levels of PPF of 1770 µmol/s
and a high efficacy of up to 2.9 µmol/J. The fixture efficacy will vary depending on the Input Voltage used.
LUMATEK ZEUS 600W 2.6
LED Fixture with 6 interchangeable LED bars is designed to cover perfectly 1,4 x 1,4 m for Flowering and
1,5 x 1,5 m for Vegetative. The higher specification is a linear multi-light bar fixture producing very high levels of PPF of 1570 µmol/s
and a high efficacy of up to 2.6 µmol/J. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
LUMATEK Zeus 465W Pro 2.9
LED Fixture with 5 interchangeable LED bars is designed to cover perfectly 1,2 x 1,2 m. The higher specification is a linear multi-light bar fixture producing high levels of PPF of 1353 µmol/s and a high efficacy of up to 2.9 µmol/J. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
LUMATEK ZEUS 465W 2.6
LED Fixture with 5 interchangeable LED bars is designed to cover perfectly 1,2 x 1,2 m. The higher specification is a linear multi-light bar fixture producing high levels of PPF of 1215 µmol/s and a high efficacy of up to 2.6 µmol/J. The fixture efficacy will vary depending on the Input Voltage used.
Link to official Lumatek product Page
Universal Control Systems Compatibility
Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
The new line of Zeus with interchangeable magnetic click LED bars is built using high quality Lumatek drivers and latest generation top bin LEDs from Lumileds and Osram, generating a full-spectrum light source ideal for vegetative and flowering cycles.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. The full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.
The new line of Zeus is built using high quality Lumatek drivers and latest generation top bin LEDs from Lumileds and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection cover technology on the LED bars; resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
For different cultivars, propagation and vegetative growth periods the Zeus may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with interchangeable magnetic click LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.
The a full-spectrum grow light producing consistently high quality & high yield indoor crops. This fixture has a larger rectangular foldable frame with a ingenious array that creates a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents.

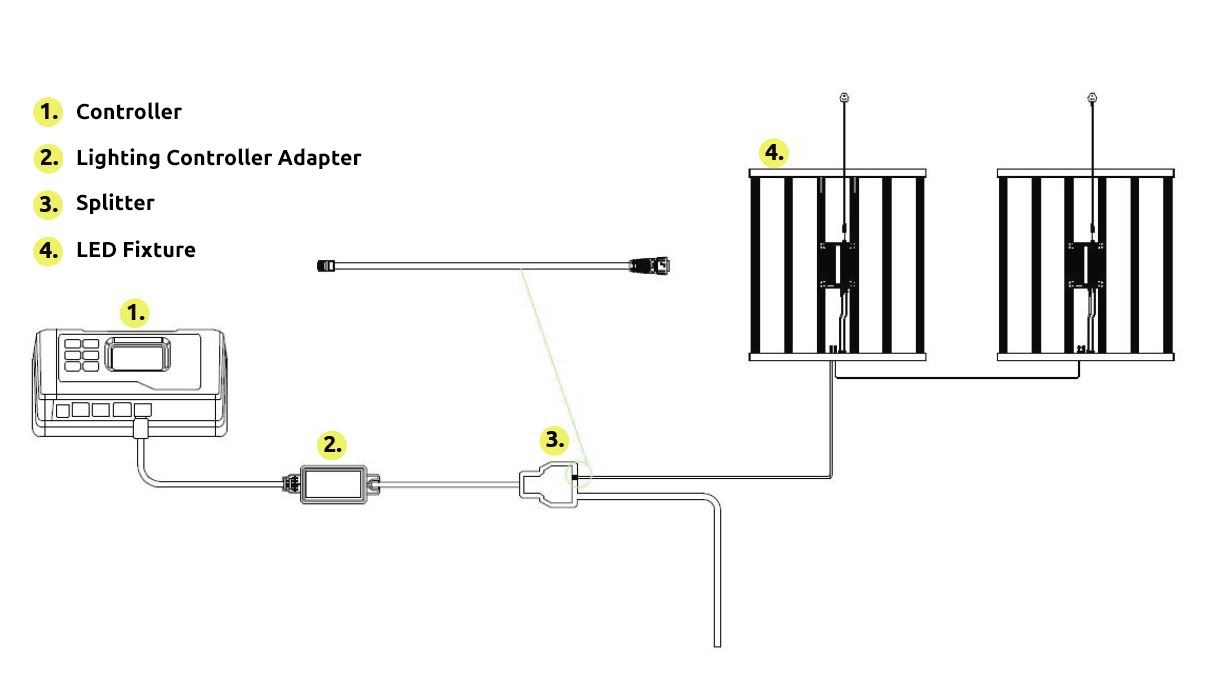

The LED fixture can also be externally controlled with a Lumatek digital lighting controller Digital Panel Plus 2.0 featuring light timing, automated dimming (1% steps), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
| Variant | Power (W) | Voltage (V) | Current (A) | PPF (µmol/s) | PPE (µmol/J) | Colour temperature (K) | Lifespan (h) | Beam Angle | Power factor | Dimming | Controllable | Dimming range | Cooling | IP Rating | Spectrum | Light Source | Dimensions | Weight | Warranty | Controller | Footprint | Qty of led bars | Replaceable LED bars | Includes | Driver | ID | Vendor ID | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000 W Xtreme PPFD CO2 | 1000 W | 230 V | 4,62-1,25 A | 2925 µmol/s | 2,6 µmol/J | 3800 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 118,1 x 109,1 x 10,57 cm | 18 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,5 x 1,5 m | 10 | Yes | 10 x Lumatek 100W Pro 2.9 Full-Spectrum Magnet Light Bars, 1 x LED Structure with Connecting Cables, 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 1 x Lumatek 1000W Xtreme Pro Driver + Connecting Cables | 1 x Lumatek 1000W Xtreme Pro Driver | CVG04857 | LUMLED003 | 2 355,50 € | |
| 1000W Pro | 1000 W | 230 V | 4,76-1,36 A | 2925 µmol/s | 2,9 µmol/J | 4000 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 170 x 121,9 x 4,82 cm | 17,5 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,5 x 1,5 m | 10 | Yes | 10 x Lumatek 100W Pro 2.9 Full-Spectrum Magnet Light Bars, 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 2 x 500W Pro Incorporated Drivers | 2 x 500W Pro Incorporated Drivers + Connecting cables | CVG05836 | LUMLED009 | 2 421,90 € | |
| 465W Pro 2.9 | 465 W | 230 V | 0,63-2,23 A | 1353 µmol/s | 2,9 µmol/J | 3800 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 99,8 x 90 x 5,2 cm | 10 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,2 x 1,2 m | 5 | Yes | 1 x LED Structure with Connecting Cables, 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 5 x Lumatek 93W Pro 2.9 Full-Spectrum Magnet Light Bars, 1 x Lumatek 465W Pro 2.9 Driver with Connecting Cables | 465W 220-240V with Twist Lock Capability | CVG05837 | LUMLED011 | 1 199,20 € | |
| 600W 2.6 | 600 W | 230 V | 0,81-2,76 A | 1570 µmol/s | 2,6 µmol/J | 4000 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 109,1 x 118,2 x 5,2 cm | 13,5 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,4 x 1,4 m | 6 | Yes | 1 x LED Structure with Connecting Cables, 1 x 0-10V Light Dimmer + Velcro, 2 x Metal Cable Hangers, 6 x Lumatek 100W 2.6 Full-Spectrum Magnet Light Bars, 1 x Lumatek 600W Driver with Connecting Cables | 600W 220-240V with Twist Lock Capability | CVG05838 | LUMLED020 | 1 228,80 € | |
| 600W Pro 2.9 | 600 W | 230 V | 0,86-2,88 A | 1770 µmol/s | 2,9 µmol/J | 3800 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 109,1 x 118,2 x 5,2 cm | 13,5 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,4 x 1,4 m | 6 | Yes | 1 x LED Structure with Connecting Cables, 1 x 0-10V Light Dimmer + Velcro, 6 x Lumatek 100W Pro 2.9 Full-Spectrum Magnet Light Bars, 1 x Lumatek 600W Pro 2.9 Driver with Connecting Cables | 600W 220-240V with Twist Lock Capability | CVG05839 | LUMLED010 | 1 445,20 € | |
| 465W Pro 2.6 | 465 W | 230 V | - | 1215 µmol/s | 2,6 µmol/J | 3800 K | 60 000 h | 120° | 0,95 | Yes | Yes | OFF - 25% - 50% - 75% - 100% with 0-10V Light Dimmer (included) | Passive | IP65 | Full Spectrum | 4000K White Diodes Lumileds 3030 HE Plus, 660nm Red Diodes Osram SQ 3.24 | 99,8 x 90 x 51,9 cm | 11 kg | 5 Years | Lumatek Digital Panel Plus 2.0 - Up to 100 fixtures - Not incl. | 1,2 x 1,2 m | 5 | Yes | 1 x LED Structure with Connecting Cables, 1 x 0-10V Light Dimmer + Velcro, 1 x Lumatek 465W Driver with Connecting Cables, 5 x Lumatek 93W 2.6 Full-Spectrum Magnet Light Bars, 2 x Metal Cable Hangers - 1 x Manual | 465W 220-240V with Twist Lock Capability | CVG05860 | LUMLED021 | 977,90 € |
