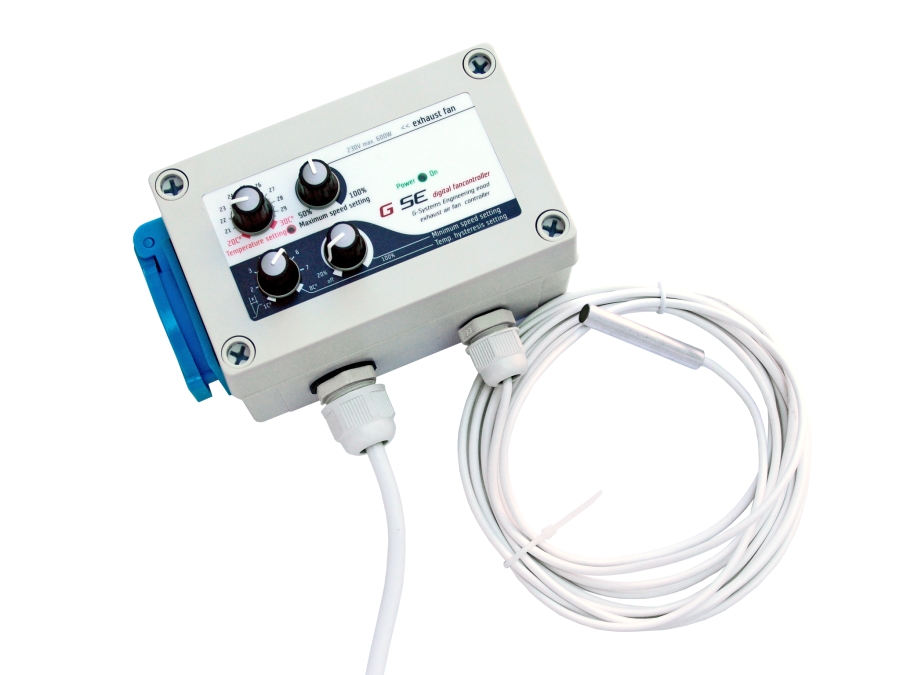

G-Systems hysteresis controller is a temperature dependent speed controller for ventilated rooms with one more more fans.
The controller keeps the temperature constantly and prevents to run under the set minimum-speed, as well to run over the set maximum speed. The hysteresis defines the temperature range. It can be easily controlled, adjusting the required temperature minimum-, maximum speed and hysteresis on four knobs.
The controller comes as a finished part and is ready to use. This reliable fan controller comes as complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4m long sensor cable and can be extended up to 50 meters.
Controls ventilator speed according to temperature settings
Keeps the temperature constant
Low voltage sensor is perfect for humid rooms
Plugs with flap-lids
Includes 4 m power cable
Possible to extend power cable to 50 m
|Variant||Power (W)||Voltage (V)||Current (A)||Negative pressure setting range||Protection class||Speed setting range||Temperature measure range||Temperature setting range||Dimensions||ID||Vendor ID||Price|
|1 A||600 W||230 V||1 A||100% to 50%||IP54||20% to 100%||–55°C to +125°C||20C° to 30C°||16 x 9 x 11 cm||CVG00322||FC02-210EU-AC||149,17 €|
|1 A||-||-||10 A||-||-||-||-||-||-||CVG00323||149,17 €|
