GSE Temperature - Humidity - Negative Pressure controller (2 fan)

  • Select: Variant
  • Select: Socket & Plugs

Product ID: CVG00320
Vendor ID: FC12-202

166,00 € Retail: 166,00 € 166.0 EUR

166,00 €


* tax excl.

Product not available

This is currently a wholesale site only. Please log in to see wholesale pricelist. No account yet? Register to sign up or contact us if any questions.

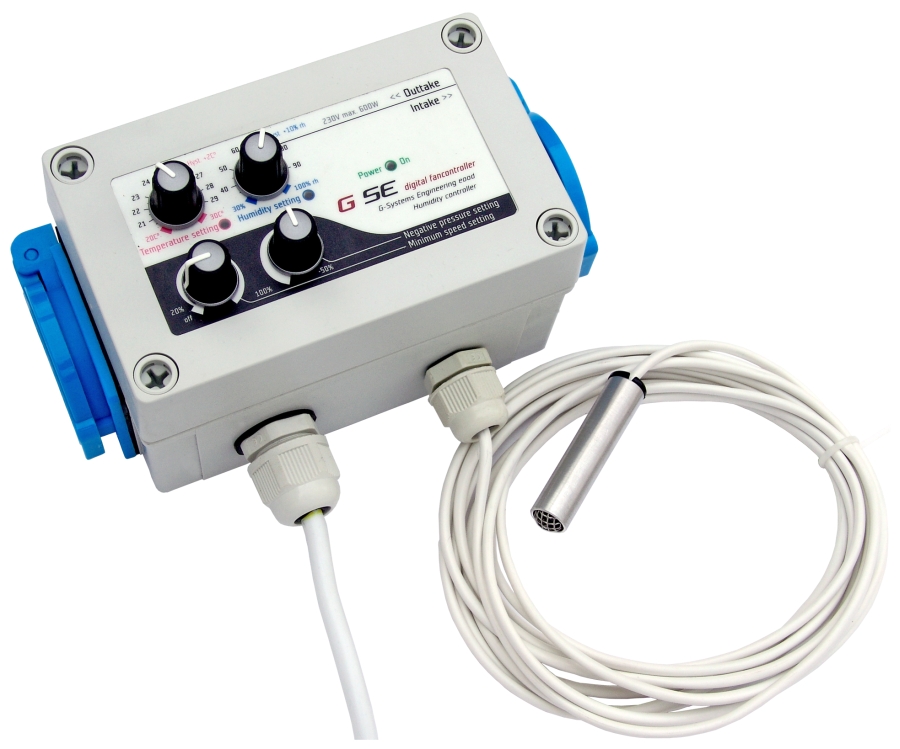

G-Systems Humidity, temperature and negative pressure controller is a digital fan controller for rooms with air-flow in and out.

The fan controller keeps the room humidity & temperature constant and under negative pressure to prevent odours from escaping. It can be easily controlled, adjusting the required humidity, temperature, min. speed and the negative pressure of your room on four knobs. Three LED lights indicate the control status and on-position.

The fan controller can by used also only as air out regulator on two fans if there is a natural way of air inlet. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4m long cable.

  • Controls humidity, temperature, negative pressure

  • Prevents unwanted odours leaking

  • Can be used for 2 ventilators

  • Water-resistant

  • Plugs with flap-lids

  • Low voltage sensor is perfect for humid rooms

  • 4m sensor cable

Variant Power (W) Voltage (V) Current (A) Frequency Humidity accuracy Humidity setting range Negative pressure setting range Protection class Sensor Cable Speed setting range Temperature measure range Temperature setting range Dimensions ID Vendor ID Price
10 A 2 x 200 W 230 V 10 A 50-60 Hz ±4,5%rh 30% - 100% 50% - 100% IP54 4 m 20% - 100% 55°C to +125°C 20C° - 30C° 16 x 9 x 11 cm CVG01863 FC12-210 191,00 €
2 A 2 x 200 W 230 V 2 A 50-60 Hz ±4,5%rh 30% - 100% 50% - 100% IP54 4 m 20% - 100% 55°C to +125°C 20C° - 30C° 16 x 9 x 11 cm CVG00320 FC12-202 166,00 €
