GSE Fan controllers (16A)

  • Select: Variant
  • Select: Power Plug

Product ID: CVG04967
Vendor ID: FC20-416EU-/-/-GSE

349,17 € Retail: 349,17 € 349.17 EUR

332,50 €

N/A

* tax excl.

Product not available

This is currently a wholesale site only. Please log in to see wholesale pricelist. No account yet? Register to sign up or contact us if any questions.

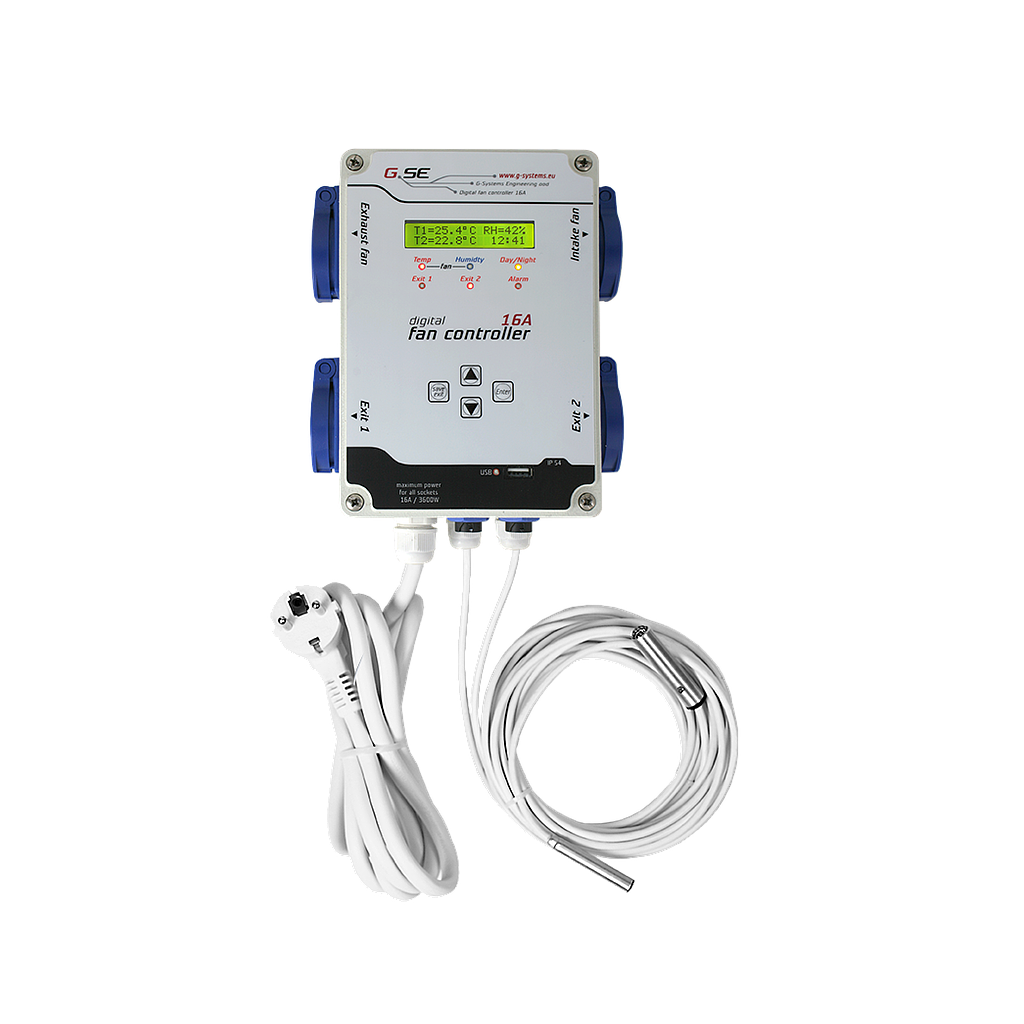

G-Systems Engineering fan controller 16A 4way + logger is a humidity and temperature dependent controller for intake and exhaust air fan with additional 2 individual programmable outputs and is equipped with a LCD display.

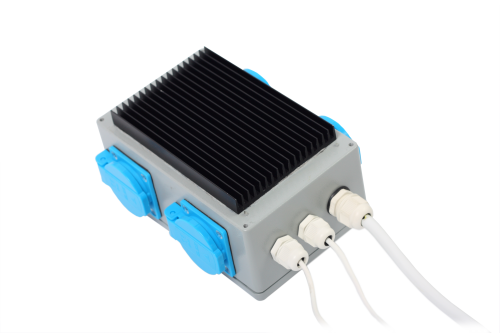

The 16A ventilation controller is built from a solid aluminium housing. It can control up to 2200 W power per outlet. The 2 additional individual programmable outputs can be assigned to one of the two sensors or be controlled by a timer function. Particularly attractive is the huge number of parameters that can be set for day/night individually to fulfil all desired requirements. The controller has also a free slot for a pressure sensor to control the intake air fan depending on the pressure difference. The device has a protection fuse of 16A, which is considered as maximum allowable load for the entire controller.

The device comes with a 2 m connection cable to connect to a conventional household outlet of 230V/16A. The sensors are supplied with a 4 m long cable which can be expanded up to 10 m. A digital display and four navigation keys provide easy navigation in the Menu and 6LED lights are indicating the current switching status. Among other things, settings such as display functions, memory frequency and languages, English, German, French, Spanish and Italian, can be selected.

Depending on the version, the controller is equipped with a USB port for data logging. All relevant measurement data and control signals get written on a CSV file to the USB stick, later they can get evaluated in an Excel application.

  • Up to 2200 W power per outlet

  • Max. load of 3600W/16A

  • 2 x Variable outputs for ventilators (phase control)

  • 2 x Individually programmable outputs for appliances (0-10V)

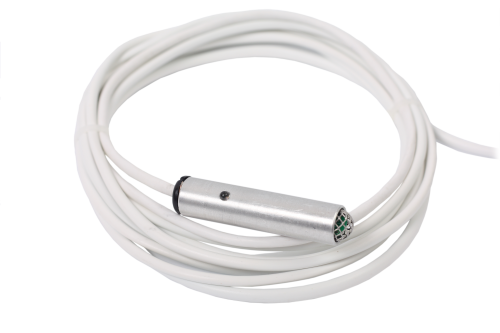

  • 1 x Temperature and humidity sensors with light detector (air)

  • 1 x Temperature Sensor (waterproof)

  • Free slot for a pressure sensor

  • 2 m connection cable

  • 4 m long sensor cables, expandable up to 10 m

  • LCD screen

  • 6LED lights for current switching status

  • Set day/night program individually

  • Optional version with USB port for data logging

  • Protection class: IP54

Variant Socket for EC exit USB Power Plug ID Vendor ID Price
230V No No EU CVG04963 FC20-216EU-/-/-GSE 332,50 €
400V + Socket for EC exit + USB Port - - IT CVG05460 FC20-416IT-EC-USB-GSE 432,50 €
230V - - AU CVG05092 FC20-216AU-/-/-GSE 332,50 €
230V - - BR CVG05096 FC20-216BR-/-/-GSE 332,50 €
230V - - CH CVG05100 FC20-216CH-/-/-GSE 332,50 €
230V - - FR CVG05104 FC20-216FR-/-/-GSE 332,50 €
230V - - IT CVG05108 FC20-216IT-/-/-GSE 332,50 €
230V - - UK CVG05112 FC20-216UK-/-/-GSE 345,00 €
400V No No EU CVG04967 FC20-416EU-/-/-GSE 349,17 €
400V - - AU CVG05116 FC20-416AU-/-/-GSE 349,17 €
400V - - BR CVG05120 FC20-416BR-/-/-GSE 349,17 €
400V - - CH CVG05124 FC20-416CH-/-/-GSE 349,17 €
400V - - FR CVG05128 FC20-416FR-/-/-GSE 349,17 €
400V - - IT CVG05132 FC20-416IT-/-/-GSE 349,17 €
400V - - UK CVG05136 FC20-416UK-/-/-GSE 361,67 €
230V + Socket for EC exit Yes No EU CVG04961 FC20-216EU-EC-/-GSE 365,83 €
230V + Socket for EC exit - - AU CVG05094 FC20-216AU-EC-/-GSE 365,83 €
230V + Socket for EC exit - - BR CVG05098 FC20-216BR-EC-/-GSE 365,83 €
230V + Socket for EC exit - - CH CVG05102 FC20-216CH-EC-/-GSE 365,83 €
230V + Socket for EC exit - - FR CVG05106 FC20-216FR-EC-/-GSE 365,83 €
230V + Socket for EC exit - - IT CVG05110 FC20-216IT-EC-/-GSE 365,83 €
230V + Socket for EC exit - - UK CVG05114 FC20-216UK-EC-/-GSE 378,33 €
230V + USB Port No Yes EU CVG04964 FC20-216EU-/-USB-GSE 382,50 €
400V + Socket for EC exit Yes No EU CVG04965 FC20-416EU-EC-/-GSE 382,50 €
230V + USB Port - - AU CVG05093 FC20-216AU-/-USB-GSE 382,50 €
230V + USB Port - - BR CVG05097 FC20-216BR-/-USB-GSE 382,50 €
230V + USB Port - - CH CVG05101 FC20-216CH-/-USB-GSE 382,50 €
230V + USB Port - - FR CVG05105 FC20-216FR-/-USB-GSE 382,50 €
230V + USB Port - - IT CVG05109 FC20-216IT-/-USB-GSE 382,50 €
400V + Socket for EC exit - - AU CVG05118 FC20-416AU-EC-/-GSE 382,50 €
400V + Socket for EC exit - - BR CVG05122 FC20-416BR-EC-/-GSE 382,50 €
400V + Socket for EC exit - - CH CVG05126 FC20-416CH-EC-/-GSE 382,50 €
400V + Socket for EC exit - - FR CVG05130 FC20-416FR-EC-/-GSE 382,50 €
400V + Socket for EC exit - - IT CVG05134 FC20-416IT-EC-/-GSE 382,50 €
230V + USB Port - - UK CVG05113 FC20-216UK-/-USB-GSE 395,00 €
400V + Socket for EC exit - - UK CVG05138 FC20-416UK-EC-/-GSE 395,00 €
400V + USB Port No Yes EU CVG04968 FC20-416EU-/-USB-GSE 399,17 €
400V + USB Port - - AU CVG05117 FC20-416AU-/-USB-GSE 399,17 €
400V + USB Port - - BR CVG05121 FC20-416BR-/-USB-GSE 399,17 €
400V + USB Port - - CH CVG05125 FC20-416CH-/-USB-GSE 399,17 €
400V + USB Port - - FR CVG05129 FC20-416FR-/-USB-GSE 399,17 €
400V + USB Port - - IT CVG05133 FC20-416IT-/-USB-GSE 399,17 €
400V + USB Port - - UK CVG05137 FC20-416UK-/-USB-GSE 411,67 €
230V + Socket for EC exit + USB Port Yes Yes EU CVG04962 FC20-216EU-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - AU CVG05095 FC20-216AU-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - BR CVG05099 FC20-216BR-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - CH CVG05103 FC20-216CH-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - FR CVG05107 FC20-216FR-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - IT CVG05111 FC20-216IT-EC-USB-GSE 415,83 €
230V + Socket for EC exit + USB Port - - UK CVG05115 FC20-216UK-EC-USB-GSE 428,33 €
400V + Socket for EC exit + USB Port Yes Yes EU CVG04966 FC20-416EU-EC-USB-GSE 432,50 €
400V + Socket for EC exit + USB Port - - AU CVG05119 FC20-416AU-EC-USB-GSE 432,50 €
400V + Socket for EC exit + USB Port - - BR CVG05123 FC20-416BR-EC-USB-GSE 432,50 €
400V + Socket for EC exit + USB Port - - CH CVG05127 FC20-416CH-EC-USB-GSE 432,50 €
400V + Socket for EC exit + USB Port - - FR CVG05131 FC20-416FR-EC-USB-GSE 432,50 €
400V + Socket for EC exit + USB Port - - UK CVG05139 FC20-416UK-EC-USB-GSE 445,00 €
