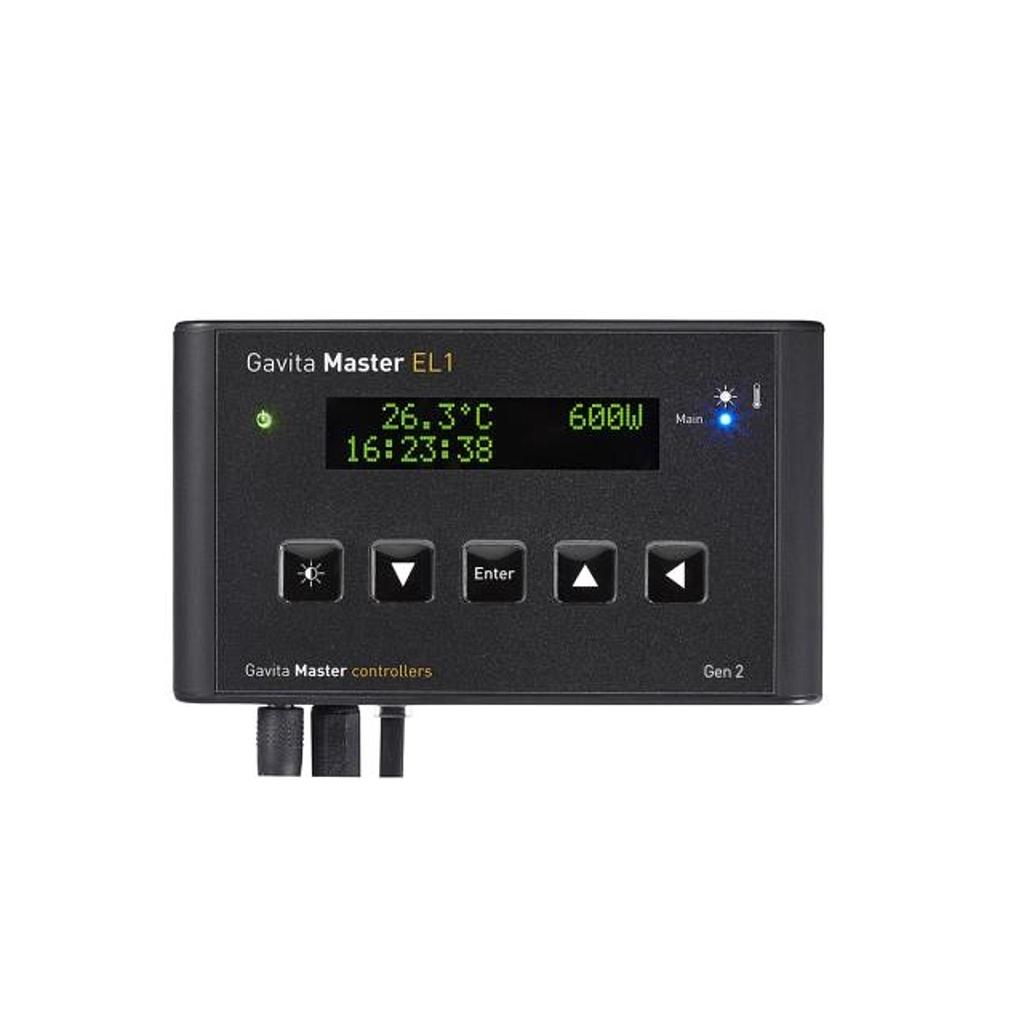

The Master controller EL1 and EL2 Gen2 are our entry-level systems for centrally controlling large rooms with e-series fixtures. The second generation of Master controllers features improved and expanded functionality that raises the bar.
The most important and valued features of the Master controller are the temperature safety features. Your lamps will automatically dim when your climate control is no longer able to maintain the correct temperature.
Non-volatile memory
Event logging
Independent sunrise and sunset settings
Independent light cycles on the EL2
The Master controller EL1F & EL2F – Gen 2 are new to the family. Not only do they offer everything the Gen 2 controller has to offer in control and safety, but they also provide integrated, intelligent fan control, based on a PID algorithm.
Intelligent PID fan control – The PID control reduces temperature fluctuations and is also self-learning. The results are a stable temperature in your grow room and a quieter fan.
0-10V EC fan control
Intelligent PID fan control
Non-volatile memory
Event logging
Independent sunrise and sunset settings
Independent light cycles on the EL2
Variant | Suitable fan | Fan outputs | Maximum fans | Fan control range | Light control channels | Max. Fixtures | Alarm contacts | Light control range | ID | Vendor ID | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
EL1 | - | - | - | - | 1 | 40 (Single Bus) / 500 (Repeater Bus) | - | 50 - 115% | CVG04247 | GAV-EL1 | 418,00 € | |
EL1F | EC | 1 | 2 | 10 - 100% | 1 | 40 (Single Bus) / 500 (Repeater Bus) | - | 50 - 115% | CVG04620 | GAV-EL1F | 490,60 € | |
EL2 | - | - | - | - | 2 | 80 (Single) / 1000 (Repeater Bus) | Yes (2,nc / no) | 50 - 115% | CVG04246 | GAV-EL2 | 514,80 € | |
EL2F | EC | 1 | 4 | 10 - 100% | 2 | 80 (Single) / 1000 (Repeater Bus) | Yes (2,nc / no) | 50 - 115% | CVG04621 | GAV-EL2F | 594,00 € |
