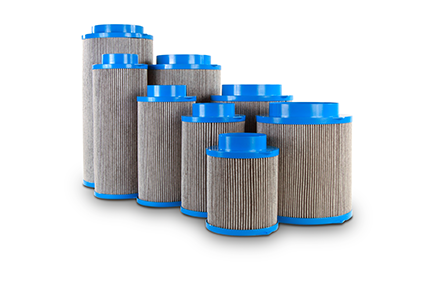

CarbonActive HL Standard carbon filter

This product is no longer available.

CarbonActive Home-Line Standard filter is a simple and less advanced version of Pro-Line corrosion resistant model, where the main difference is only the base, cover and port material. It is special because it has a four-layer activated carbon fleece mats, which provide a out-standing quality to eliminate unwanted odours and gasses. The Fleece contains very small particles of activated carbon (Ø 0,4 – 0,8mm), which will maximise the surface of odour-neutralising particles almost 10 000 times, which will give a massive difference in filtrating air. More over the fleece mats are also special, because they provide almost no-release of the carbon dust.

CarbonActive filters guarantee a smaller pressure loss than conventional filters due to their innovative structure. In other words, the air flow in your system can be increased compared to an ordinary filter without having to install a larger fan. Before you purchase your filter, make sure its cubic metre (m³) capacity is 20% higher than the fan output, so You can reduce the pressure loss to a minimum and you will provide an optimal filtration efficiency.

  • 100% high-quality coconut carbon

  • No chemical additives

  • Easy installation- fixed hangers

  • Pre-filter has a Velcro fastener

  • Minimal pressure loss

  • Fleece mats provide no carbon dust release

  • 100% tight- no unfiltered air can go through

  • Layered technology provides smaller and lighter silter

  • Includes M5 pre-filter fleece with a fine particle grade

  • Do not contain connections and reducers- available as a add-on product

  • Possible to fit also to conventional connections and reducers

  • Max. relative humidity tolerance (< 65%)

Product TypeConnection (mm)Air-Flow Range (m³/h)Optimum Air-Flow (m³/h)Pre-Filter (inclusive)Weight (kg)Dimentions DxL (mm)
200Z 125Ø 125 50 - 200160M5 / CA HL Pre Filter 2001,0Ø 190 x 240
300Z 125Ø 12575 - 300240M5 / CA HL Pre Filter 3001,2Ø 190 x 315
400Z 125Ø 125100 - 400320M5 / CA HL Pre Filter 4001,4Ø 190 x 370
500ZL 125Ø 125125 - 500400M5 / CA HL Pre Filter 500L1,7Ø 190 x 475
500ZW 200Ø 200125 – 500400M5 / CA HL Pre Filter 500W2,5Ø 275 x 315
650Z 200Ø 200160 - 650520M5 / CA HL Pre Filter 6503,0Ø 275 x 370
800Z 200Ø 200250 - 800 640M5 / CA HL Pre Filter 8003,5Ø 275 x 475
1000ZL 200Ø 200250 - 1000800M5 / CA HL Pre Filter 1000L4,0Ø 275 x 595
1200Z 200Ø 200300 - 1200960M5 / CA HL Pre Filter 12005,0Ø 275 x 765
