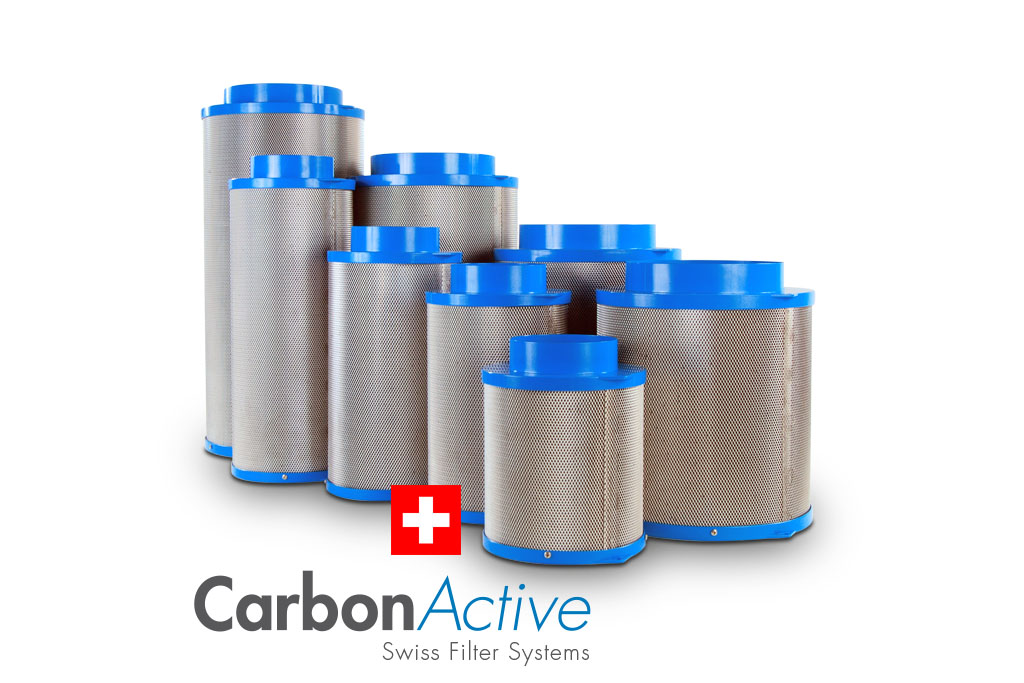

CarbonActive HL Granulate carbon filter

CarbonActive Home-Line Granulate Filters are filled with 100% high-quality activated carbon from Coconut. Activated carbon made from coconut shells is proven to be the most efficient to filter unwanted gases and odours. Carbon from coconut is harder and therefore releases less carbon dust than other alternative raw materials. Due to unique porosity of the activated coconut carbon, it resists higher humidity levels. The Filter Includes M5 pre-filter fleece. M5 is a fine particle filter grade, which absorbs all particles larger than 10µm (0.001mm) and protects the pores of the activated carbon from getting blocked by dirt particles. To extend the service life of a filter, you are advised to carefully change the pre-filter as specified.
CarbonActive filters guarantee a smaller pressure loss than conventional filters due to their innovative structure. In other words, the air flow in your system can be increased compared to an ordinary filter without having to install a larger fan. Before you purchase your filter, make sure its cubic metre ( m³) capacity is 20% higher than the fan output, so you can reduce the pressure loss to a minimum and you will provide an optimal filtration efficiency.

  • 100% coconut carbon

  • Contains less unwanted carbon dust

  • Easy installation with fixed hangers

  • Does not contain connections and reducers- available as a add-on product

  • Possible to fit also to conventional connections and reducers

  • Ecological and sustainable

  • No chemical additives

  • Very good resistance at high humidity levels

  • Minimal pressure loss

  • Includes M5 pre-filter fleece- offers a fine particle grade

  • Max. relative humidity tolerance (< 80%)

Product TypeConnection Ø (mm)Air-Flow range (m³/h)Optimum Air-flow (m³/h)Pre-FilterWeight (kg)Dimensions Ø DxL (mm)
200G 12512550 – 200160M5 / CA HL Pre Filter 2002,7190 x 240
300G 12512575 – 300240 M5 / CA HL Pre Filter 3003,7190 x 315
400G 125125100 – 400 320M5 / CA HL Pre Filter 4004,7190 x 370
500GL 125125125 – 500400 M5 / CA HL Pre Filter 500L5,7190 x 475
500GW 200200125 – 500400M5 / CA HL Pre Filter 5006,7275 x 315
650G 200200 160 – 650520M5 / CA HL Pre Filter 6508,3275 x 370
800G 200200250 – 800640M5 / CA HL Pre Filter 80010,0275 x 475
1000GL 200200250 – 1000800M5 / CA HL Pre Filter 1000L13,0275 x 595
1200G 200200300 – 1200960M5 / CA HL Pre Filter 120015,0275 x 765
