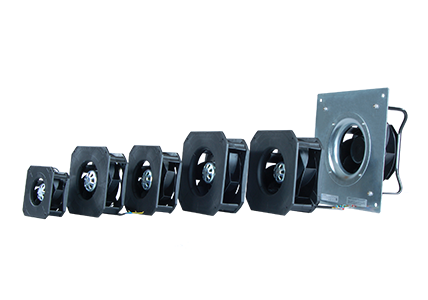

CarbonActive EC radial module without controller

EC Radial-module provides more power than conventional AC fans. EC technology is highly power-efficient and can be steplessly controlled with the CarbonActive controllers, which are available as add-on product. The Radial-modul is an EC ventilator, but without the housing. A old-school standard asynchronous motor (AC motor) differs from an electronically commutated motor (EC motor) by a significantly better efficiency. With the AC motor, only the voltage is reduced while the frequency remains the same and the motor goes into the leak-rich slip mode. The EC motor with electronic commutation, on the other hand, runs synchronously, so that no slippage occurs and thus no slipping losses occur.

  • EC technology

  • EBMpapst motor

  • 280 m3/h - 6500 m3/h

  • Highly energy efficient

  • Save up to 70% of power

  • No humming noises

  • High pressure (up to 1200Pa)

  • Can be operated between 10 - 100% of the power

Model TypeSpecificationsPressure (Pa)Power (W)Current (A)Dimensions (mm)Weight (kg)
280 m3/h RADICALbackward curved / plastic casing / plastic blade450270,26165 x 165 x 640,8
750 m3/h RADICALbackward curved / plastic casing / plastic blade700850,26226 x 226 x 851,6
1000 m3/h RADICALbackward curved / plastic casing / plastic blade12001700,8225 x 225 x 791,9
1250 m3/h RADICALbackward curved / plastic casing / plastic blade9001701,35270 x 270 x 922,4
1500 m3/h RADICALbackward curved / plastic casing / plastic blade7501701,35300 x 300 x 108.52,7
2200 m3/h BUS RADICALbackward curved / metal casing / plastic blade15505002,2400 x 400 x 1788,1
3500 m3/h BUS RADICALbackward curved / metal casing / plastic blade9505002,2400 x 400 x 2238,4
4000 m3/h BUS RADICALbackward curved / metal casing / plastic blade10507403,25440 x 440 x 27910,7
4500 m3/h BUS RADICALbackward curved / metal casing / plastic blade8205002,2496 x 496 x 30111,6
5000 m3/h BUS RADICALbackward curved / metal casing / plastic blade10007503,3500 x 500 x 30114,9
5800 m3/h BUS RADICALbackward curved / metal casing / plastic blade8005002,2560 x 560 x 29413,3
6500 m3/h BUS RADICALbackward curved / metal casing / plastic blade6005002,2630 x 630 x 30817,3
5000 m3/h BUS RADIPACbackward curved / metal casing / metal blade125012705,6500 x 500 x 31120,4
6250 m3/h BUS RADIPACbackward curved / metal casing / metal blade111114006500 x 500 x 36523
1080 m3/h VGRforward curved / plastic casing / plastic blade + incl. cable4852301,8220 x 179 x 21620,4
